16 mm 4 Core 0.6/1kV Cable, Stranded Copper, PVC Insulated, SWA Armed, Length 1000 M | BAHRA
(964 Product Views)
Cable (CU/PVC/SWA/PVC), 4 Core, 16mm 0.6/1kV, 1000 meter length. PVC Insulated for current leakage prevention and armored for mechanical stress resistance. Designed for power applications in residential and industrial projects. 1000 meter length. Produced by BAHRA Cables Company.
Product description

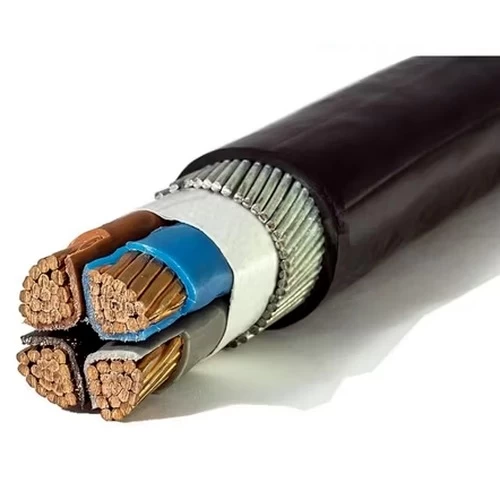

Armored stranded copper power cable, Produced by BAHRA Cables Company according to the International Electrotechnical Commission standard (IEC 60502-1). Armored with galvanized steel wires (SWA) to give it mechanical strength to protect it from external pressures that fall on the cable, As well PVC cables are a widely used and effective choice for power transmission in various applications. They are distinguished by their economical cost, reliable performance, and durability, As the PVC (polyvinyl chloride) layer forms excellent insulation around the conductor to prevent leakage of electric current, the outer sheath provides additional protection for the cable against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the cable and is highly resistant to water and moisture. This makes it suitable for indoor and outdoor applications where there is a risk of mechanical damage. Available in a variety of sizes and colors with the highest quality and best prices.
- Conductor: Stranded Copper
- Insulation Material: PVC (Polyvinyl Chloride)
- Armouring: Galvanized Steel Wires (SWA)
- Outer Sheath: PVC
- Voltage: 0.6/1kV
- Number of Cores: 4
- Conductor Size (Cross-Sectional Area): 16 mm2
- Number of wires: 7
- Nominal Insulation Thickness: 1 mm
- Nominal Steel Wire Diameter: 1.6 mm
- Nominal Sheath Thickness: 1.8 mm
- Approx Overall Diameter: 25.9 mm
- Weight: 1665 kg/km
- Standard Length Cable: 1000 meters
- Phase Core Colors: (Blue, Brown, Black, Grey)
- Standard: BS 5467
