4x4mm Stranded Copper Cable, Steel Tape Armed, PVC Insulated, 0.6/1kV | Alfanar
(1153 Product Views)

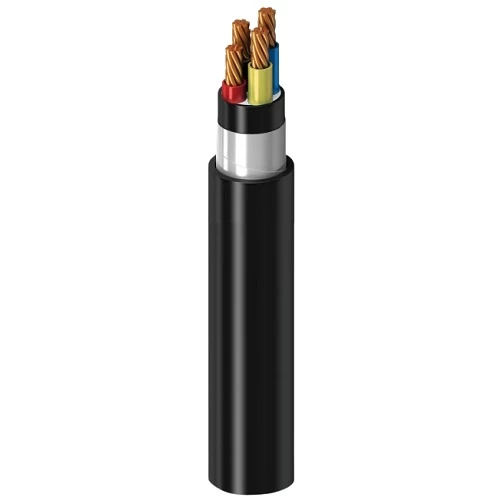

Four core stranded copper armored cable (CU/PVC/STA/PVC), size 4mm2, low voltage 600/1000V, phase core color is red, yellow, blue and black. it is characterized by highl resistance to water and moisture. This makes it suitable for indoor and outdoor applications where there is a risk of mechanical damage produced by Alfanar Company.
Product description
Stranded copper armored cable (CU/PVC/STA/PVC), produced by Alfanar Company according to the International Electrotechnical Commission standard (IEC 60502-1). Armored with double steel tape (STA) to give it mechanical strength to protect it from external pressures that fall on the cable, As well PVC cables are a widely used and effective choice for power transmission in various applications. They are distinguished by their economical cost, reliable performance, and durability, As PVC (polyvinyl chloride) layer forms excellent insulation around the conductor to prevent leakage of electric current, the outer sheath provides additional protection for the cable against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the cable and is highly resistant to water and moisture. This makes it suitable for indoor and outdoor applications where there is a risk of mechanical damage.
- Conductor Type: Copper
- Insulation Material: PVC (Polyvinyl Chloride)
- Armouring: Double Layers of Galvanized Steel Tapes (STA)
- Outer Jacket: PVC
- Voltage: 600/1000 volts
- Conductor Shape: Round Stranded (rm)
- Number of Cores: 4
- Conductor Size (Cross-Sectional Area): 4 mm2
- Max DC Conductor Resistance at 20°C: 4.6100 ohm/km
- Max AC Conductor Resistance at 90°C: 5.5159 ohm/km
- Current Rating Laid in Ground: 37 Ampere
- Current Rating Laid in Ducts: 27 Ampere
- Current Rating Laid in Free Air: 32 Ampere
- Approx Overall Diameter: 17.4 mm
- Weight: 560 kg/km
- Phase Core Colors: (Red, Yellow, Blue, Black)
- Standard: IEC 60502-1
