Stranded Copper Power Cable 3x10+6mm2, 600/1000V, STA Armed, PVC Insulated | Riyadh Cables
(926 Product Views)

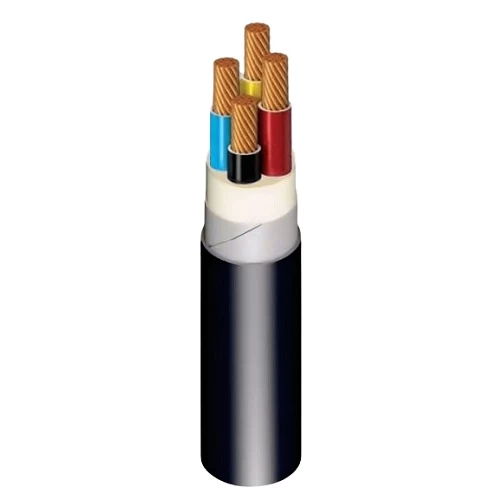

3.5 core armored power cable (CU/PVC/STA/PVC) stranded copper conductor, Conforms to IEC 60502-1, used in electrical distribution panels, in applications where there is a risk of mechanical damage, Size 3×10+6 mm2, produced by Riyadh Cables Company.
Product description
3.5 core armored power cable (CU/PVC/STA/PVC) stranded copper conductor, Produced by Riyadh Cables Company. according to IEC 60502-1 (International Electrotechnical Commission) standard. Armored with layer of double steel tape (STA) to give it mechanical strength to protect it from external pressures that fall on the cable. Also Insulated with two layers of high-quality PVC (polyvinyl chloride) material, the first layer provides excellent electrical insulation. The sheath also provides protection for the cable from corrosion, external factors, heat and moisture damage. It is used to conduct electrical current in various domestic, commercial and industrial applications. Such as lighting equipment, central air conditioners, power plugs, and home appliances. Available in a variety of sizes and colors with highest quality and best prices.
- Insulation Material: PVC (Polyvinyl Chloride)
- Outer jacket : PVC
- Voltage : 600/1000 volts
- Phase Conductor Shape: Round Stranded (rm)
- Neutral Conductor Shape: Round Stranded (rm)
- Number of Cores: 3 Core + Neutral Line
- Conductor Size (Cross-Sectional Area): ( 3cx10 mm2 ) + 6mm2
- Number of Phase Wires: 7
- Number of Neutral Wires: 7
- Approx Diameter of Phase Conductor: 4.01 mm
- Approx Diameter of Neutral Conductor: 3.12 mm
- Nominal Insulation Thickness of Phase: 1 mm
- Nominal Insulation Thickness of Neutral: 1 mm
- Armoring: STA (Steel Tape Armor)
- Nominal Steel Wire Diameter: 0.2 mm
- Nominal Sheath Thickness: 1.8 mm
- Approx Overall Diameter: 21 mm
- Weight: 850 kg/km
- Length : 1000 meters
- Phase Core Colors: (Red, Yellow, Blue, Black)
- Standard: IEC 60502-1
