Single Core Stranded AWA Armored Copper Cable Size 240 mm2, PVC, 600/1000 V, Brown Color | Riyadh Cables
(897 Product Views)
-size_height_45.webp "YouMats"){kind=logo}
Shop with Youmats Armored copper cable (CU/PVC/AWA/PVC), it is armored with layer of aluminum wires, Insulated with two layers of high-quality PVC material, size 240 mm2 single core stranded, brown color, It is used to conduct electrical current in various applications, Produced by Riyadh Cables Company.
Product description

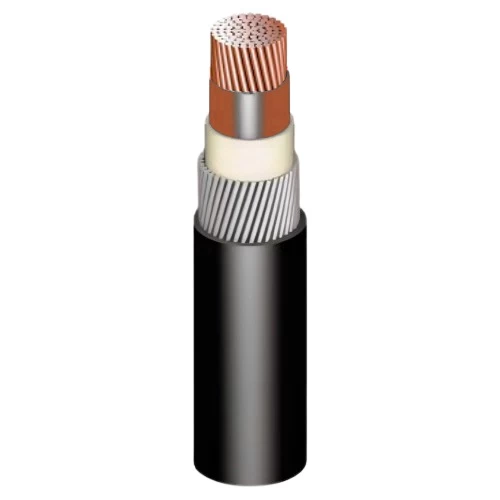

Armored copper cable (CU/PVC/AWA/PVC), single core stranded wire. Produced by Riyadh Cables Company. Armored with layer of aluminum wires (AWA) to give it mechanical strength to protect it from external pressures that fall on the cable, such as soil weight and passing cars. Intended for fixed installations, indoors and outdoors, also used in distribution of electrical energy, in applications where there is a risk of mechanical damage. Available in a variety of sizes and colors with the highest quality and best prices.
- Insulation: PVC
- Outer jacket: PVC
- Voltage: 600/1000 volts
- Size (cross-sectional area): 240 mm2
- Number of wires: 61
- Approx conductor diameter: 20 mm
- Thickness of first insulation layer: 2 mm
- Armour: Aluminium Wire (AWA)
- Nominal Aluminium Wire Diameter : 1.6 mm
- Thickness of outer jacket layer : 1.9 mm
- Approx overall diameter : 34 mm
- Weight : 3100 kg/km
- Length : 500 meters
- Color : Brown
- Conformity according to international standard: IEC 60502-1
