Single Core Stranded AWA Armored Copper Cable Size 500 mm2, PVC, 600/1000 V, Brown Color | Riyadh Cables
(1022 Product Views)
-size_height_45.webp "YouMats"){kind=logo}
AWA Armored PVC copper cable size 500 mm2 single core stranded, nominal aluminium wire diameter 2 mm, number of wires 61, brown color, used in distribution of electrical energy, Intended for fixed installations, indoors and outdoors, Produced by Riyadh Cables Company.
Product description

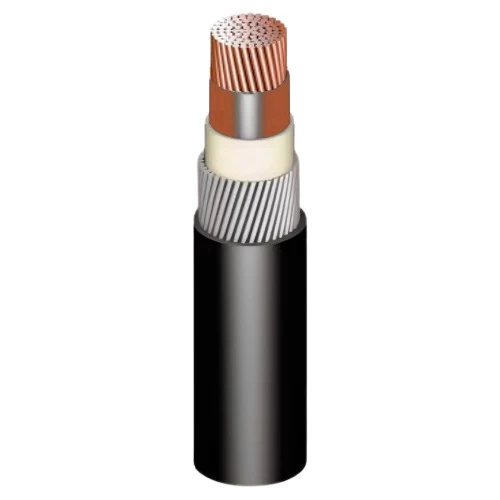

Armored copper cable (CU/PVC/AWA/PVC), single core stranded wire. Produced by Riyadh Cables Company. Armored with layer of aluminum wires (AWA) to give it mechanical strength to protect it from external pressures that fall on the cable, such as soil weight and passing cars. Intended for fixed installations, indoors and outdoors, also used in distribution of electrical energy, in applications where there is a risk of mechanical damage. Available in a variety of sizes and colors with the highest quality and best prices.
- Insulation: PVC
- Outer jacket: PVC
- Voltage: 600/1000 volts
- Size (cross-sectional area): 500 mm2
- Number of wires: 61
- Approx conductor diameter: 28.5 mm
- Thickness of first insulation layer: 2.8 mm
- Armour: Aluminium Wire (AWA)
- Nominal Aluminium Wire Diameter : 2 mm
- Thickness of outer jacket layer : 2.2 mm
- Approx overall diameter : 45 mm
- Weight : 6050 kg/km
- Length : 500 meters
- Color : Brown
- Conformity according to international standard: IEC 60502-1
