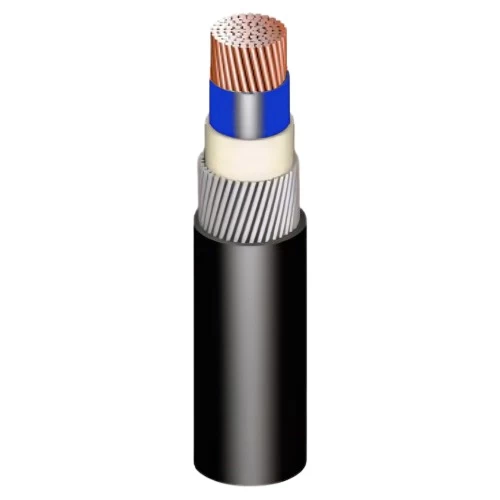

Armored copper cable (CU/PVC/AWA/PVC) single core stranded, Armored with layer of aluminum wires to give it mechanical strength, used in conduct electrical current in various domestic, commercial and industrial applications, size 400 mm2, blue color, Produced by Riyadh Cables Company.
Product description
Armored copper cable (CU/PVC/AWA/PVC), single core stranded wire. Produced by Riyadh Cables Company. Armored with layer of aluminum wires (AWA) to give it mechanical strength to protect it from external pressures that fall on the cable, such as soil weight and passing cars. Intended for fixed installations, indoors and outdoors, also used in distribution of electrical energy, in applications where there is a risk of mechanical damage. Available in a variety of sizes and colors with the highest quality and best prices.
- Insulation: PVC
- Outer jacket: PVC
- Voltage: 600/1000 volts
- Size (cross-sectional area): 400 mm2
- Number of wires: 61
- Approx conductor diameter: 25.4 mm
- Thickness of first insulation layer: 2.6 mm
- Armour: Aluminium Wire (AWA)
- Nominal Aluminium Wire Diameter : 2 mm
- Thickness of outer jacket layer : 2.1 mm
- Approx overall diameter : 42 mm
- Weight : 4875 kg/km
- Length : 500 meters
- Color : Blue
- Conformity according to international standard: IEC 60502-1
