AWA Armored PVC Copper Cable Size 16 mm2 Single Core Stranded 600/1000V, Blue Color | Riyadh Cables
(1350 Product Views)
-size_height_45.webp "YouMats"){kind=logo}
AWA Armored PVC copper cable single core stranded, blue color, size 16 mm2, length 1000 meters, Produced by Riyadh Cables Company, Intended for fixed installations, indoors and outdoors, also used in distribution of electrical energy.
Product description

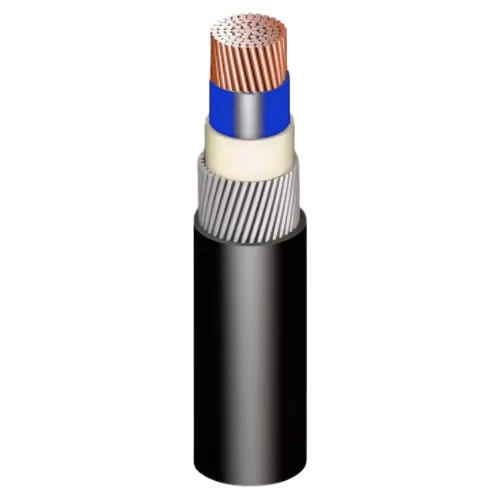

Armored copper cable (CU/PVC/AWA/PVC), single core stranded wire. Produced by Riyadh Cables Company. Armored with layer of aluminum wires (AWA) to give it mechanical strength to protect it from external pressures that fall on the cable, such as soil weight and passing cars. Intended for fixed installations, indoors and outdoors, also used in distribution of electrical energy, in applications where there is a risk of mechanical damage. Available in a variety of sizes and colors with the highest quality and best prices.
- Insulation: PVC
- Outer jacket: PVC
- Voltage: 600/1000 volts
- Size (cross-sectional area): 16 mm2
- Number of wires: 7
- Approx conductor diameter: 5.03 mm
- Thickness of first insulation layer: 1 mm
- Armour: Aluminium Wire (AWA)
- Nominal Aluminium Wire Diameter : 0.8 mm
- Thickness of outer jacket layer : 1.8 mm
- Approx overall diameter : 15 mm
- Weight : 375 kg/km
- Length : 1000 meters
- Color : Blue
- Conformity according to international standard: IEC 60502-1
