4×25 mm Aluminum Stranded Cable 600/1000V, STA Armed, PVC Insulated | Riyadh Cables
(1618 Product Views)

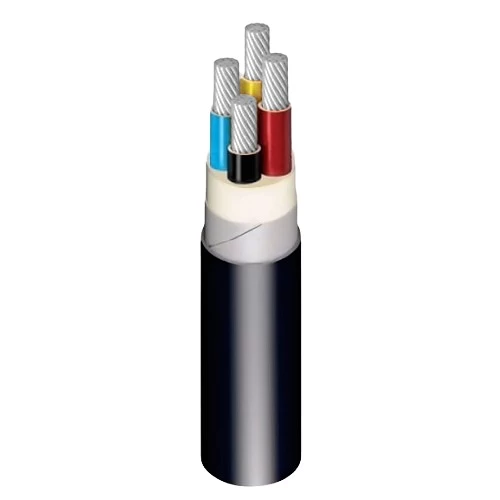

Aluminium armored cable, (AL/PVC/STA/PVC), 4 core stranded conductor, size 4×25 mm2, insulated with two layers of high-quality PVC (polyvinyl chloride) material, insulation colors (red, yellow, blue, black), produced by Riyadh Cables Company.
Product description
Aluminium armored cable, (AL/PVC/STA/PVC), 4 core stranded conductor, Produced by Riyadh Cables Company, Armored with double steel tape (STA) to give it mechanical strength to protect it from external pressures that fall on the cable. Also Insulated with two layers of high-quality PVC (polyvinyl chloride) material, the first layer provides excellent electrical insulation. The outer sheath also provides protection for the cable against corrosion and external factors, making it suitable for use in outdoor or humid environments. It is used to conduct electrical current in various domestic, commercial and industrial applications where there is a risk of mechanical damage. Available in a variety of sizes and colors with highest quality and best prices.
- Insulation Material: PVC (Polyvinyl Chloride)
- Outer Sheath: PVC
- Voltage: 600/1000 volts
- Conductor Shape: Round Stranded (rm)
- Number of Cores: 4
- Conductor Size (Cross-Sectional Area): 25 mm2
- Number of Wires: 7
- Approx Conductor Diameter: 6.30 mm
- Nominal Insulation Thickness: 1.2 mm
- Armoring: STA (Steel Tape Armor)
- Nominal Steel Tape Thickness: 0.2 mm
- Nominal Sheath Thickness: 1.8 mm
- Approx Overall Diameter: 28 mm
- Weight: 1150 kg/km
- Cable Length: 1000 meters
- Phase Core Color: (Red, Yellow, Blue, Black)
- Standard: IEC 60502-1
