50mm 0.6/1kV Armoured Cable AL/PVC/STA/PVC, 4 Core, Stranded Aluminium, Length 1000 meter | BAHRA
(960 Product Views)

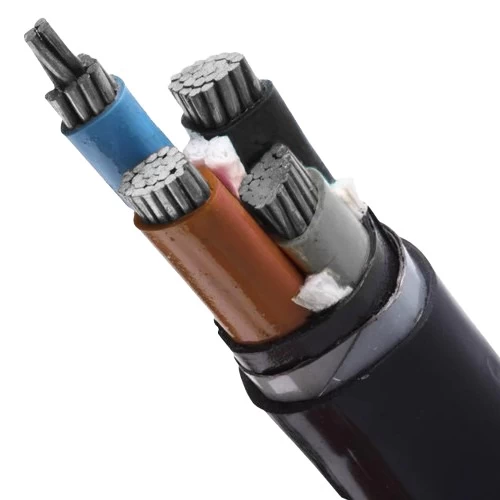

Armoured power cable 50mm 0.6/1kV AL/PVC/STA/PVC, 4 core, stranded aluminium, Length 1000 meters, Durable PVC insulation makes it suitable for industrial settings. Manufactured by BAHRA Cables Company.
Product description
Armored stranded aluminum power cable, Produced by BAHRA Cables Company according to the International Electrotechnical Commission standard (IEC 60502-1). Armored with galvanized double steel tape (STA) to give it mechanical strength to protect it from external pressures that fall on the cable, As well PVC cables are a widely used and effective choice for power transmission in various applications. They are distinguished by their economical cost, reliable performance, and durability, As the PVC (polyvinyl chloride) layer forms excellent insulation around the conductor to prevent leakage of electric current, the outer sheath provides additional protection for the cable against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the cable and is highly resistant to water and moisture. This makes it suitable for indoor and outdoor applications where there is a risk of mechanical damage. Available in a variety of sizes and colors with the highest quality and best prices.
- Conductor: Stranded Aluminum
- Insulation Material: PVC (Polyvinyl Chloride)
- Armouring: Galvanized Double Steel Tapes (STA)
- Outer Sheath: PVC
- Voltage: 0.6/1kV
- Number of Cores: 4
- Conductor Size (Cross-Sectional Area): 50 mm2
- Number of wires: 7
- Nominal Insulation Thickness: 1.4 mm
- Nominal Steel Tape Thickness: 0.2 mm
- Nominal Sheath Thickness: 2.0 mm
- Approx Overall Diameter: 31.3 mm
- Weight: 1452 kg/km
- Standard Packaging Cable: 1000 meters
- Phase Core Colors: (Blue, Brown, Black, Grey)
- Standard: BS 5467
