Stranded Single Core Aluminium PVC Cable 630 mm 600/1000V | Riyadh Cables
(1182 Product Views)

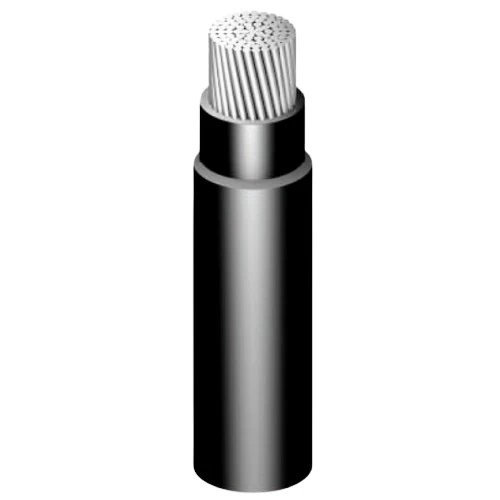

Shop now stranded single core aluminium PVC cable 1×630 mm2, produced by Riyadh Cables Company according to standard (IEC 60502-1), features two insulated layers that provides protection for the cable from corrosion and external factors, black color.
Product description
Stranded single core electrical aluminium cable (AL/PVC/PVC), produced by Riyadh Cables Company, Insulated with two layers of high-quality PVC (polyvinyl chloride) material, the first layer provides excellent electrical insulation. The outer jacket also provides protection for the cable from corrosion and external factors. It is used to conduct electrical current in various domestic, commercial and industrial applications. Such as lighting equipment, central air conditioners, power plugs, and home appliances. Available in a variety of sizes and colors with highest quality and best prices.
- Insulation Material: PVC (Polyvinyl Chloride)
- Outer Sheath: PVC
- Voltage: 600/1000 volts
- Conductor Shape: Stranded (rm)
- Number of Cores: Single Core
- Conductor Size (Cross-Sectional Area): 630 mm2
- Number of Wires: 91
- Approx Conductor Diameter: 32.56 mm
- Nominal Insulation Thickness: 2.8 mm
- Nominal Sheath Thickness: 2.2 mm
- Approx Overall Diameter: 43 mm
- Weight: 2725 kg/km
- Cable Length: 500 meters
- Phase Core Color: Black
- Standard: IEC 60502-1
