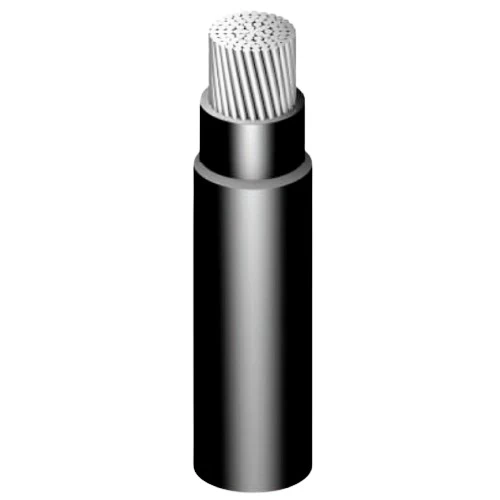

Stranded Single Core Aluminium PVC Cable 150 mm 600/1000V | Riyadh Cables
(1326 Product Views)
-size_height_45.webp "YouMats"){kind=logo}
Available with Youmats stranded single core aluminium PVC cable 1×150 mm2, nominal insulation thickness 1.8 mm, approx overall diameter 23 mm, it is used to conduct electrical current in various domestic, commercial and industrial applications, such as lighting equipment, central air conditioners, black color, produced by Riyadh Cables Company.
Product description
Stranded single core electrical aluminium cable (AL/PVC/PVC), produced by Riyadh Cables Company, Insulated with two layers of high-quality PVC (polyvinyl chloride) material, the first layer provides excellent electrical insulation. The outer jacket also provides protection for the cable from corrosion and external factors. It is used to conduct electrical current in various domestic, commercial and industrial applications. Such as lighting equipment, central air conditioners, power plugs, and home appliances. Available in a variety of sizes and colors with highest quality and best prices.
- Insulation Material: PVC (Polyvinyl Chloride)
- Outer Sheath: PVC
- Voltage: 600/1000 volts
- Conductor Shape: Stranded (rm)
- Number of Cores: Single Core
- Conductor Size (Cross-Sectional Area): 150 mm2
- Number of Wires: 37
- Approx Conductor Diameter: 15.47 mm
- Nominal Insulation Thickness: 1.8 mm
- Nominal Sheath Thickness: 1.6 mm
- Approx Overall Diameter: 23 mm
- Weight: 725 kg/km
- Cable Length: 1000 meters
- Phase Core Color: Black
- Standard: IEC 60502-1
