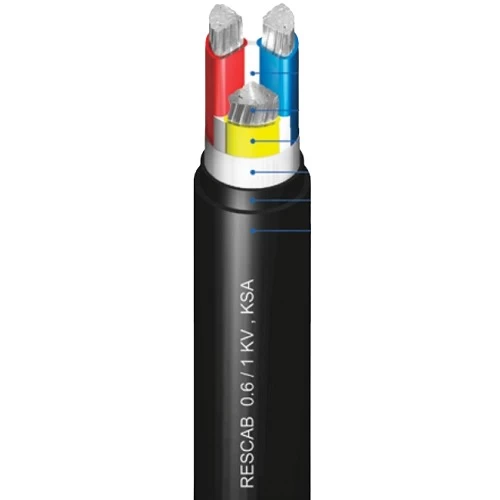

95 sq mm 3 Core 0.6/1kV Stranded Aluminium Power Cable, PVC Insulation, 500 meter | RESCAB
(649 Product Views)
-size_height_45.webp "YouMats"){kind=logo}
Stranded aluminium power cable (AL/PVC/PVC), 3 core, 95mm2 size conductor, 0.6/1kV, PVC layer forms excellent insulation which offers an exceptional combination of properties that make it the ideal choice for a wide range of power and energy transmission applications, produced by Red Sea Cables (RESCAB) company.
Product description
Stranded aluminium power cable (AL/PVC/PVC), Produced by Red Sea Cables (RESCAB) Company. PVC cables are a widely used and effective choice for power transmission in various applications. They are distinguished by their economical cost, reliable performance, and durability, As PVC (polyvinyl chloride) layer forms excellent insulation around the conductor to prevent leakage of electric current, the outer sheath provides additional protection for the cable against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the cable and is highly resistant to water and moisture. This makes it suitable for indoor and outdoor applications. Available in a variety of sizes and colors with the highest quality and best prices.
- Conductor: Stranded Aluminium
- Insulation Material: PVC (Polyvinyl Chloride)
- Outer Sheath: PVC
- Voltage: 0.6/1kV
- Number of Cores: 3
- Conductor Size (Cross-Sectional Area): 95 mm2
- Number of wires: 19
- Nominal Insulation Thickness: 1.6 mm
- Nominal Sheath Thickness: 2.1 mm
- Approx Overall Diameter: 40 mm
- Max DC Conductor Resistance at 20°C: 0.320 ohm/km
- Weight: 1930 kg/km
- Standard Length: 500 meters
- Phase Core Color: Red, Yellow, Blue
- Standard: IEC 60502-1
