500mm 3 Phase 0.6/1kV Cable AL/PVC/PVC, Stranded Aluminum, 300 m | BAHRA
(714 Product Views)
-size_height_45.webp "YouMats"){kind=logo}

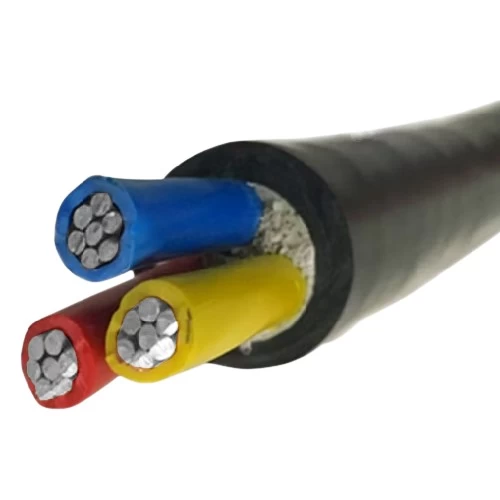

Stranded aluminum power cable (AL/PVC/PVC), 3 phase, 500mm2 size conductor, Low Voltage 0.6/1kV, These cables can be used in a wide range of applications, whether indoor or outdoor, in residential, industrial and commercial buildings, red, yellow, blue, produced by Bahra Cables Company.
Product description
Stranded aluminum power cable (AL/PVC/PVC), Produced by BAHRA Cables Company. PVC cables are a widely used and effective choice for power transmission in various applications. They are distinguished by their economical cost, reliable performance, and durability, As PVC (polyvinyl chloride) layer forms excellent insulation around the conductor to prevent leakage of electric current, the outer sheath provides additional protection for the cable against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the cable and is highly resistant to water and moisture. This makes it suitable for indoor and outdoor applications where there is no risk of mechanical damage. Available in a variety of sizes and colors with the highest quality and best prices.
- Conductor: Stranded Aluminum
- Insulation Material: PVC (Polyvinyl Chloride)
- Outer Sheath: PVC
- Voltage: 0.6/1kV
- Number of Cores: 3
- Conductor Size (Cross-Sectional Area): 500 mm2
- Number of wires: 61
- Nominal Insulation Thickness: 2.8 mm
- Nominal Sheath Thickness: 3.4 mm
- Approx Overall Diameter: 77.3 mm
- Weight: 7035 kg/km
- Standard Packaging Cable: 300 meters
- Phase Core Colors: Red, Yellow, Blue
- Standard: IEC 60502-1
