400 mm 3 Core 0.6/1kV Stranded Aluminium Cable, PVC Insulation, 250 meter | Red Sea Cables
(787 Product Views)

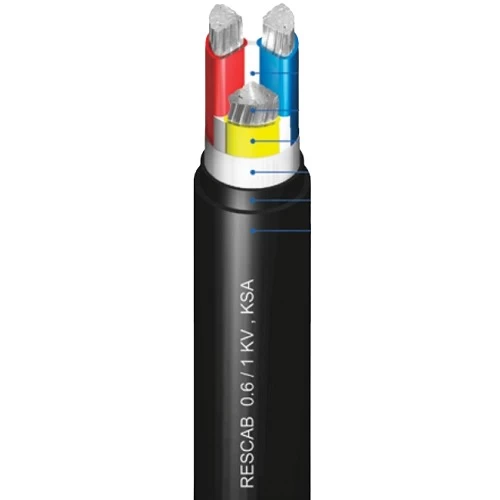

Stranded aluminium power cable (AL/PVC/PVC), 3 core, 400mm2 size conductor, 0.6/1kV, PVC cables are a widely used and effective choice for power transmission, produced by Red Sea Cables (RESCAB) company, it offer an exceptional combination of properties that make it the ideal choice.
Product description
Stranded aluminium power cable (AL/PVC/PVC), Produced by Red Sea Cables (RESCAB) Company. PVC cables are a widely used and effective choice for power transmission in various applications. They are distinguished by their economical cost, reliable performance, and durability, As PVC (polyvinyl chloride) layer forms excellent insulation around the conductor to prevent leakage of electric current, the outer sheath provides additional protection for the cable against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the cable and is highly resistant to water and moisture. This makes it suitable for indoor and outdoor applications. Available in a variety of sizes and colors with the highest quality and best prices.
- Conductor: Stranded Aluminium
- Insulation Material: PVC (Polyvinyl Chloride)
- Outer Sheath: PVC
- Voltage: 0.6/1kV
- Number of Cores: 3
- Conductor Size (Cross-Sectional Area): 400 mm2
- Number of wires: 61
- Nominal Insulation Thickness: 2.6 mm
- Nominal Sheath Thickness:3.1 mm
- Approx Overall Diameter: 73 mm
- Max DC Conductor Resistance at 20°C: 0.0778 ohm/km
- Weight: 6640 kg/km
- Standard Length: 250 meters
- Phase Core Color: Red, Yellow, Blue
- Standard: IEC 60502-1
