95mm Three Core Stranded Aluminum Electric Cable 0.6/1kV, PVC 85°C Insulation, Black Color, 1000 meter | SCC
(473 Product Views)
-size_height_45.webp "YouMats"){kind=logo}

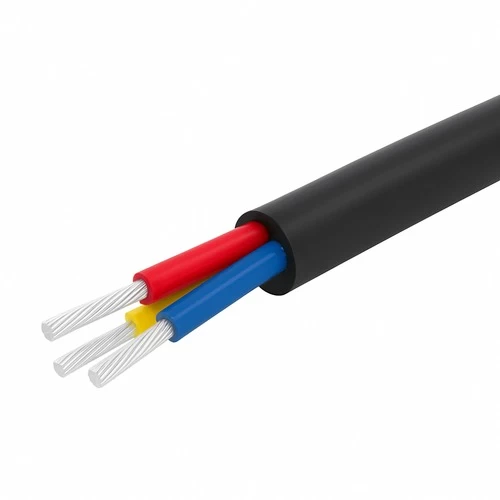

Unarmored stranded aluminum cable (AL/PVC/PVC), three core, size 95 mm², low voltage 0.6/1 kV, produced by Saudi Cables Company (SCC), used to connect heavy loads in industrial and infrastructure projects with demanding requirements.
Product description
Unarmored stranded aluminum power cable (AL/PVC/PVC), produced by Saudi Cables Company (SCC). PVC cables are a widely used and effective choice for power transmission in various applications. They are distinguished by their economical cost, reliable performance, and durability. As the PVC (polyvinyl chloride) layer forms excellent insulation around the conductor to prevent leakage of electric current, the outer sheath provides additional protection for the cable against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the cable and is highly resistant to water and moisture. This makes it suitable for indoor and outdoor applications where there is no risk of mechanical damage. Available in a variety of sizes and colors with the highest quality and best prices.
- Conductor: Stranded Aluminum
- Insulation Material: PVC type 5 to BS6746 rated 85°C
- Outer Sheath: PVC type ST2 to IEC 502
- Voltage: 0.6/1kV
- Number of Cores: 3
- Conductor Size (Cross-Sectional Area): 95 mm2
- Number of wires: 15
- Nominal Insulation Thickness: 1.6 mm
- Nominal Sheath Thickness: 2.1 mm
- Approx Overall Diameter: 32.9 mm
- Weight: 1555 kg/km
- Standard Length: 1000 meters
- Insulation Color: Red, Yellow, Black
- Sheath Color: Black
- Standard: IEC: 502
- Catalogue Number: RJH3-17A
