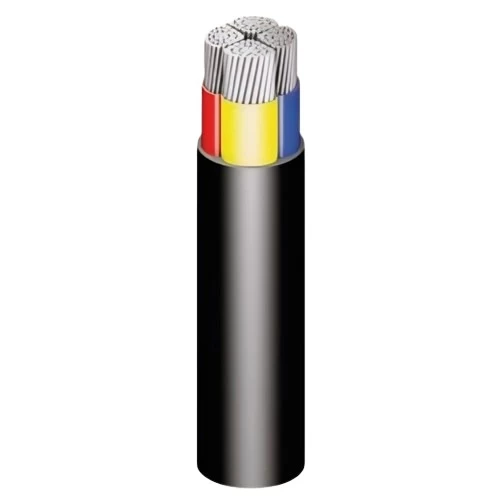

3×120+70 mm Stranded Aluminum Cable, 600/1000V, PVC Insulated | Riyadh Cables
(883 Product Views)
-size_height_45.webp "YouMats"){kind=logo}
Stranded aluminum power cable (AL/PVC/PVC), 3 phase + neutral line, cross-sectional area 3×120+70 mm2, according to IEC 60502-1 (international electrotechnical commission), it is used to conduct electrical current in various domestic, commercial and industrial applications, insulation color (red, yellow, blue, black), produced by Riyadh Cables Company.
Product description
Stranded aluminum power cable (AL/PVC/PVC), 3 phase + neutral line, Produced by Riyadh Cables Company, Insulated with two layers of high-quality PVC (polyvinyl chloride) material, the first layer provides excellent electrical insulation. The sheath also provides protection for the cable from corrosion, external factors, heat and moisture damage. It is used to conduct electrical current in various domestic, commercial and industrial applications. Such as lighting equipment, central air conditioners, power plugs, and home appliances. Available in a variety of sizes and colors with highest quality and best prices.
- Insulation Material: PVC (Polyvinyl Chloride)
- Outer Sheath: PVC
- Voltage: 600/1000 volts
- Phase Conductor Shape: Sectoral Stranded (sm)
- Neutral Conductor Shape: Round Stranded (rm)
- Number of Cores: 3.5 (3 Core + Neutral Line)
- Conductor Size (Cross-Sectional Area): ( 3c×120 mm2 ) + 70 mm2
- Number of Phase Wires: 15
- Number of Neutral Wires: 19
- Approx Diameter of Neutral Conductor: 10.55 mm
- Nominal Insulation Thickness of Phase: 1.6 mm
- Nominal Insulation Thickness of Neutral: 1.4 mm
- Nominal Sheath Thickness: 2.3 mm
- Approx Overall Diameter: 43 mm
- Weight: 2375 kg/km
- Cable Length: 500 meters
- Phase Core Colors: (Red, Yellow, Blue, Black)
- Standard: IEC 60502-1
