240 mm 3 Core 0.6/1kV Stranded Aluminium Cable, PVC Insulation and Sheath, 250 meter | RESCAB
(692 Product Views)
-size_height_45.webp "YouMats"){kind=logo}

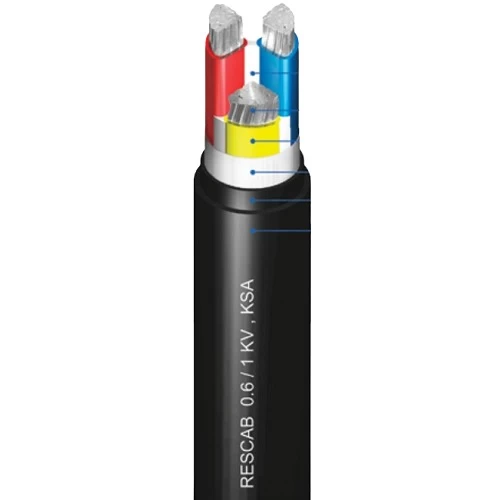

Stranded aluminium power cable (AL/PVC/PVC), 3 core, 240mm2 size conductor, 0.6/1kV, produced by Red Sea Cables (RESCAB) company, available in the highest quality and at the best prices, phase core color is red, yellow, blue.
Product description
Stranded aluminium power cable (AL/PVC/PVC), Produced by Red Sea Cables (RESCAB) Company. PVC cables are a widely used and effective choice for power transmission in various applications. They are distinguished by their economical cost, reliable performance, and durability, As PVC (polyvinyl chloride) layer forms excellent insulation around the conductor to prevent leakage of electric current, the outer sheath provides additional protection for the cable against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the cable and is highly resistant to water and moisture. This makes it suitable for indoor and outdoor applications. Available in a variety of sizes and colors with the highest quality and best prices.
- Conductor: Stranded Aluminium
- Insulation Material: PVC (Polyvinyl Chloride)
- Outer Sheath: PVC
- Voltage: 0.6/1kV
- Number of Cores: 3
- Conductor Size (Cross-Sectional Area): 240 mm2
- Number of wires: 37
- Nominal Insulation Thickness: 2.2 mm
- Nominal Sheath Thickness: 2.7 mm
- Approx Overall Diameter: 59 mm
- Max DC Conductor Resistance at 20°C: 0.125 ohm/km
- Weight: 4370 kg/km
- Standard Length: 250 meters
- Phase Core Color: Red, Yellow, Blue
- Standard: IEC 60502-1
