Two Core 4mm Jeddah Aluminum Cable, PVC Insulated, Low Voltage 0.6/1 kV
(773 Product Views)
-size_height_45.webp "YouMats"){kind=logo}

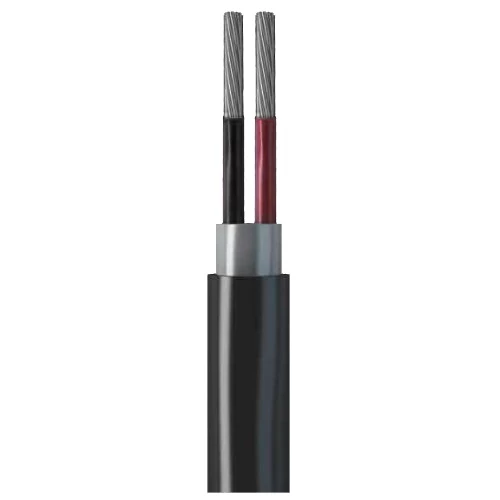

Two core stranded Aluminium cable (AL/PVC/PVC), It is characterized by its economical cost, reliable performance and durability, low voltage 600/1000V, produced by Jeddah Company, size 4 mm2.
Product description
Two core stranded Aluminium cable (AL/PVC/PVC), Produced by Jeddah Company, according to the International Electrotechnical Commission standard (IEC 60502-1). PVC cables are a widely used and effective choice for power transmission in various applications. They are distinguished by their economical cost, reliable performance, and durability, As PVC (polyvinyl chloride) layer forms excellent insulation around the conductor to prevent leakage of electric current, the outer sheath provides additional protection for the cable against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the cable and is highly resistant to water and moisture. This makes it suitable for indoor and outdoor applications. Available in different shapes, sizes and conductor ratings to meet diverse application requirements.
- Conductor Type: Aluminium
- Insulation Material: PVC Compound (Polyvinyl Chloride)
- Bedding: PVC Compound (or LSHF or PE)
- Jacketing: PVC Compound (or LSHF or PE)
- Voltage: 600/1000 volts
- Conductor Shape: Round Stranded (rm)
- Number of Cores: 2
- Conductor Size (Cross-Sectional Area): 4 mm2
- Nominal Insulation Thickness: 1 mm
- Nominal Sheath Thickness: 1.8 mm
- Approx Overall Diameter: 14.7 mm
- Weight: 315 kg/km
- Max DC Conductor Resistance at 20°C: 4.610 ohm/km
- Current Rating Laid in Ground: 55 Ampere
- Current Rating Laid in Ducts: 45 Ampere
- Current Rating Laid in Free Air: 49 Ampere
- Phase Core Colors: (Red, Black)
- Standard: IEC 60502-1
