Aluminum Cable 25 sqmm 0.6/1 kV, Stranded 2 Core, PVC Insulated | Alfanar
(782 Product Views)
-size_height_45.webp "YouMats"){kind=logo}

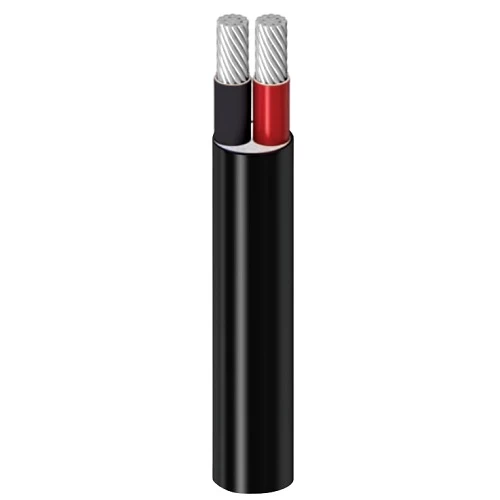

Two core stranded aluminum power cable (AL/PVC/PVC), The outer jacket provides additional protection for the cable from shock, friction and abrasion, and prevents harmful sunlight from damaging the cable, produced by Al Fanar Company, size 25 mm2.
Product description
Two core stranded aluminum power cable (AL/PVC/PVC), Produced by Al Fanar Company according to the International Electrotechnical Commission standard (IEC 60502-1). PVC cables are a widely used and effective choice for power transmission in various applications. They are distinguished by their economical cost, reliable performance, and durability, As PVC (polyvinyl chloride) layer forms excellent insulation around the conductor to prevent leakage of electric current, the outer sheath provides additional protection for the cable against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the cable and is highly resistant to water and moisture. This makes it suitable for indoor and outdoor applications where there is no risk of mechanical damage. Available in different shapes, sizes and conductor ratings to meet diverse application requirements.
- Conductor Type: Aluminum
- Insulation Material: PVC (Polyvinyl Chloride)
- Outer Jacket: Double PVC
- Voltage: 600/1000 volts
- Conductor Shape: Round Stranded (rm)
- Number of Cores: 2
- Conductor Size (Cross-Sectional Area): 25 mm2
- Max DC Conductor Resistance at 20°C: 1.2000 ohm/km
- Max AC Conductor Resistance at 70°C: 1.4421 ohm/km
- Current Rating Laid in Ground: 99 Ampere
- Current Rating Laid in Ducts: 71 Ampere
- Current Rating Laid in Free Air: 90 Ampere
- Approx Overall Diameter: 19.6 mm
- Weight: 535 kg/km
- Phase Core Color: (Red, Black)
- Standard: IEC 60502-1
