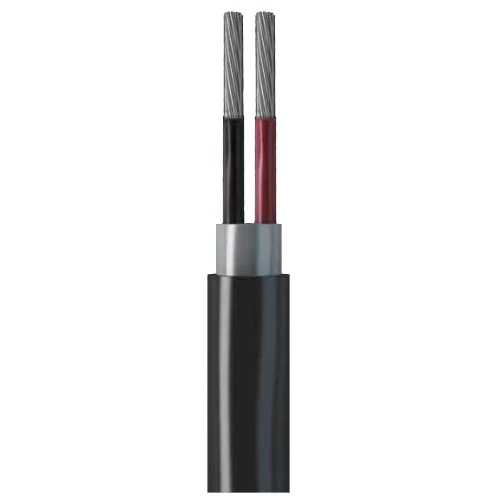

Two Core 35mm Jeddah Aluminum Cable, PVC Insulated, Low Voltage 0.6/1 kV

Two Core 35mm Jeddah Aluminum Cable, PVC Insulated, Low Voltage 0.6/1 kV

(722 Product Views)

Two core stranded Aluminium cable (AL/PVC/PVC), Weight 1020kg/km PVC (polyvinyl chloride) layer forms excellent insulation around the conductor, produced by Jeddah Company, size 35 mm2.

in stock

Quantity

Call Now

🔗 Related Content

4mm 4 Core Stranded Copper Cable 60... 4 Core 16 mm Stranded Copper Cable... 25mm 4 Core Stranded Copper Cable 6... Two Core 35mm Jeddah Aluminum Cable... Two Core 2.5mm Jeddah Aluminum Cabl... Two Core 25mm Jeddah Aluminum Cable... Two Core 4mm Jeddah Aluminum Cable,... Two Core 1.5mm Jeddah Aluminum Cabl...

Product description

Two core stranded Aluminium cable (AL/PVC/PVC), Produced by Jeddah Company, according to the International Electrotechnical Commission standard (IEC 60502-1). PVC cables are a widely used and effective choice for power transmission in various applications. They are distinguished by their economical cost, reliable performance, and durability, As PVC (polyvinyl chloride) layer forms excellent insulation around the conductor to prevent leakage of electric current, the outer sheath provides additional protection for the cable against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the cable and is highly resistant to water and moisture. This makes it suitable for indoor and outdoor applications. Available in different shapes, sizes and conductor ratings to meet diverse application requirements.

Conductor Type: Aluminium
Insulation Material: PVC Compound (Polyvinyl Chloride)
Bedding: PVC Compound (or LSHF or PE)
Jacketing: PVC Compound (or LSHF or PE)
Voltage: 600/1000 volts
Conductor Shape: Round Stranded (rm)
Number of Cores: 2
Conductor Size (Cross-Sectional Area): 35 mm2
Nominal Insulation Thickness: 1.2 mm
Nominal Sheath Thickness: 1.7 mm
Approx Overall Diameter: 25.1 mm
Weight: 1020 kg/km
Max DC Conductor Resistance at 20°C: 0.524 ohm/km
Current Rating Laid in Ground: 177 Ampere
Current Rating Laid in Ducts: 147 Ampere
Current Rating Laid in Free Air: 182 Ampere
Phase Core Colors: (Red, Black)
Standard: IEC 60502-1

Additional Information▼

Applications and Usage of 35 mm² Aluminum Cable in Saudi Construction Projects

The 35 mm² aluminum cable from Jeddah Cables is the optimal choice for numerous construction and industrial projects across the Kingdom of Saudi Arabia, thanks to its high specifications. This cable is widely used in:

Electrical Distributor Connections: To ensure safe power distribution within residential and commercial buildings.
External Lighting Systems: Due to its high resistance to ultraviolet (UV) rays and moisture, making it ideal for use on streets and open areas.
Internal Construction Works: Where the PVC insulation provides a double layer of protection against corrosion and abrasion.
Industrial Connections: In factories and warehouses that require robust conductors with minimal current resistance.

Purchasing Guide: Why Choose Jeddah Cables for This Size?

When purchasing a 35 mm² aluminum cable, ensure the following specifications are met to guarantee quality and compliance with Saudi standards:

Conductor: Must be stranded aluminum to ensure flexibility and high conductivity, as in our product.
Insulation and Sheath: Must be of PVC type (70°C) to ensure electrical insulation safety.
Standard: Confirm that the product complies with the international standard IEC 60502-1.
Manufacturer: Choosing a reputable company like 'Jeddah Cables' ensures obtaining uniform quality free from manufacturing defects.

At youmats.com, we offer you the 35 mm² aluminum cable at a competitive price with a quality guarantee, making it easy for you to meet your construction project needs safely and efficiently.
