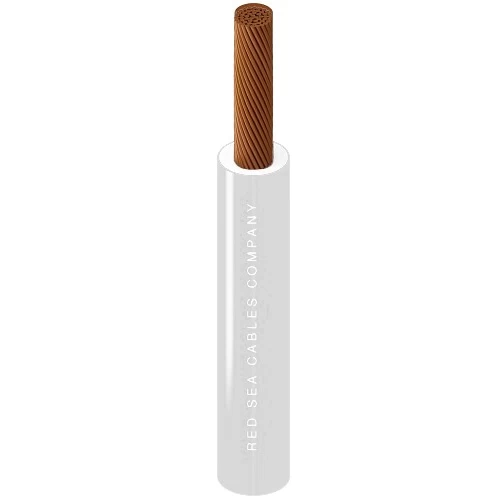

CU/ZHLS Flexible Copper Wire, 10mm2, 450/750V, White Color, 100 Yards | RESCAB
(960 Product Views)
-size_height_45.webp "YouMats"){kind=logo}
Flexible copper wire (CU/LSHF), 10mm2 size, 450/750 volts, White color, Red Sea Cables, protects your facility thanks to LSHF insulation, which provides superior performance and long service life.
in stock
Product description
Flexible electrical copper wire (CU/LSHF), produced by Red Sea Cables Company. Insulated with low smoke halogen-free compound (LSHF), minimizes smoke and toxic fumes in case of fire. Suitable for use in indoor fixed installations in dry locations, where particular flexibility is required. Available in various shapes and sizes in highest quality and best prices to suit different applications and needs.
- Wire Type: H07Z-K
- Conductor: Flexible Copper (Class 5)
- Insulation Material: LSHF (Low Smoke Halogen Free)
- Voltage: 450/750 volts
- Max. Temperature: +90°C
- Conductor Size (Cross-Sectional Area): 10 mm2
- Nominal Insulation Thickness: 1.0 mm
- Approx Overall Diameter: 6.1 mm
- Max DC Conductor Resistance at 20°C: 1.91 ohm/km
- Standard Length: 100 Yards (91.4 meter) / Coils
- Insulation Color: White
- Standard: BS EN 50525-3-41
