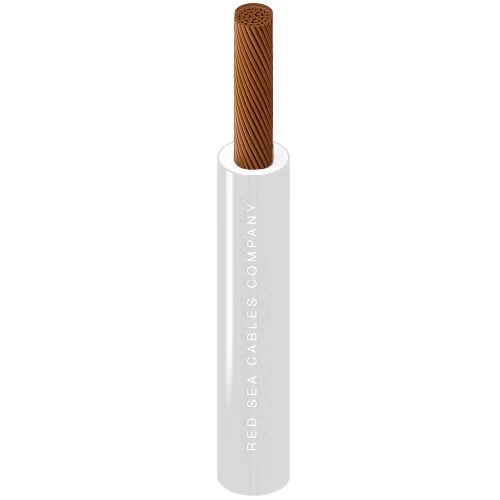

CU/LSNH Flexible Copper Wire, 35mm2, 450/750V, White Color, Coil Length 100 Yards | RESCAB
(631 Product Views)
Flexible copper wire (CU/LSHF), 35mm2 size, 450/750 volts, Made from non-toxic and recyclable materials, reducing environmental impact, from Red Sea cables, white color and other colors available.
in stock
Product description
Flexible electrical copper wire (CU/LSHF), produced by Red Sea Cables Company. Insulated with low smoke halogen-free compound (LSHF), minimizes smoke and toxic fumes in case of fire. Suitable for use in indoor fixed installations in dry locations, where particular flexibility is required. Available in various shapes and sizes in highest quality and best prices to suit different applications and needs.
- Wire Type: H07Z-K
- Conductor: Flexible Copper (Class 5)
- Insulation Material: LSHF (Low Smoke Halogen Free)
- Voltage: 450/750 volts
- Max. Temperature: +90ยฐC
- Conductor Size (Cross-Sectional Area): 35 mm2
- Nominal Insulation Thickness: 1.2 mm
- Approx Overall Diameter: 10 mm
- Max DC Conductor Resistance at 20ยฐC: 0.554 ohm/km
- Standard Length: 100 Yards (91.4 meter) / Coils
- Insulation Color: White
- Standard: BS EN 50525-3-41
