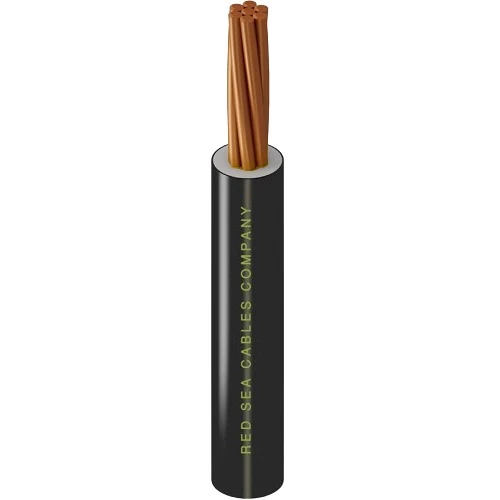

CU/LSHF Stranded Wire, 4 mm2, 450/750V, black Color, 100 Yards | RESCAB
(1034 Product Views)
Stranded copper wire (CU/LSHF) with a size of 4 mm² and a voltage of 450/750 volts from Red Sea Cables is the ideal choice for use in protected installations within metallic and non-metallic conduits, providing additional safety in sensitive environments.
Product description
Stranded electrical copper wire (CU/LSHF), produced by Red Sea Cables Company according to BS EN 50525-3-41 standard. Insulated with low smoke halogen-free compound (LSHF), minimizes smoke and toxic fumes in case of fire, therefore, it is Suitable for use in fixed and protected installations in metallic or non metallic conduits, ducts or trunks, in areas where smoke and acid gas evolution could pose a hazard to personnel or sensitive equipments in residential buildings, schools, hospitals, hotels, shopping centers, subways, etc. Available in various shapes and sizes in highest quality and best prices to suit different applications and needs.
- Wire Type: H07Z-R
- Conductor: Stranded Copper (Class 2)
- Insulation Material: LSHF (Low Smoke Halogen Free)
- Voltage: 450/750 volts
- Conductor Size (Cross-Sectional Area): 4 mm2
- Nominal Insulation Thickness: 0.8 mm
- Approx Overall Diameter: 4.2 mm
- Max DC Conductor Resistance at 20°C: 4.61 ohm/km
- Insulation Color: black
- Standard Length: 100 Yards (91.4 meter) / Plastic Reels
- Standard: BS EN 50525-3-41
