300mm2 Stranded Copper Wire, 450/750 Voltage Rating, LS0H Insulated | Alfanar
(983 Product Views)

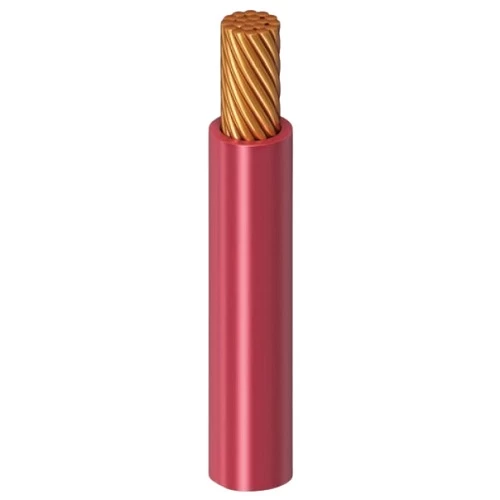

Stranded electrical copper wire (CU/LSHF), 300 mm2 size, 450/750 volts, produced by Alfanar Company, according to BS 7211 standard. Insulated with low smoke halogen-free compound (LSHF), minimizes smoke and toxic fumes in case of fire, phase core color is red.
Product description
Stranded electrical wire (CU/LSHF), produced by Alfanar Company according to BS 7211 standard. Insulated with low smoke halogen-free compound (LSHF), minimizes smoke and toxic fumes in case of fire, therefore, it is Suitable for use in fixed and protected installations in metallic or non metallic conduits, ducts or trunks for use in/on lighting fittings, switch and control devices, control panels and similar applications, in areas where smoke and acid gas evolution could pose a hazard to personnel or sensitive equipments in residential buildings, schools, hospitals, hotels, shopping centers, subways, etc. Available in various shapes and sizes in highest quality and best prices to suit different applications and needs.
- Conductor Type: Copper
- Conductor Shape: Stranded
- Insulation Material: LSHF (Low Smoke Halogen Free)
- Voltage: 450/750 volts
- Conductor Size (Cross-Sectional Area): 300 mm
- Max DC Conductor Resistance at 20°C: 0.0601 ohm/km
- Max AC Conductor Resistance at 90°C: 0.0824 ohm/km
- Approx Overall Diameter: 25.3 mm
- Weight: 2880 kg/km
- Color: Red
- Standard: BS 7211
