CU/ZHLS Flexible Copper Wire, 2.5mm2, 450/750V, Blue Color, 100 Yards | RESCAB

CU/ZHLS Flexible Copper Wire, 2.5mm2, 450/750V, Blue Color, 100 Yards | RESCAB

(761 Product Views)

Flexible electrical copper wire (CU/LSHF), 2.5mm2 size, 450/750 volts, A smart investment that saves you money in the long run, can be easily integrated into any existing wiring system, reducing installation costs, Blue color, from Red Sea Cables.

in stock

Quantity

Call Now

🔗 Related Content

PVC Coated Flexible Conduit, Size 4... Liquid Tight Flexible Conduit, Size... Riyadh 6 AWG THHN Stranded Copper A... 4mm 450/750 Volt Solid Copper Wire,... 12x1.5mm 0.6/1kV Stranded Copper Co... CU/ZHLS Flexible Copper Wire, 2.5mm... CU/ZHLS Flexible Copper Electrical... CU/ZHLS Flexible Copper Electrical...

Product description

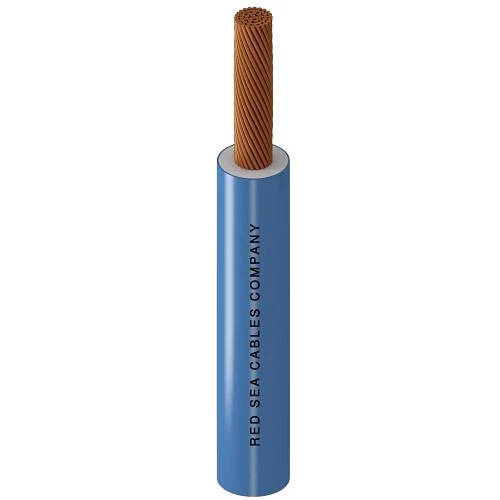

Flexible electrical copper wire (CU/LSHF), produced by Red Sea Cables Company. Insulated with low smoke halogen-free compound (LSHF), minimizes smoke and toxic fumes in case of fire. Suitable for use in indoor fixed installations in dry locations, where particular flexibility is required. Available in various shapes and sizes in highest quality and best prices to suit different applications and needs.

Wire Type: H07Z-K
Conductor: Flexible Copper (Class 5)
Insulation Material: LSHF (Low Smoke Halogen Free)
Voltage: 450/750 volts
Max. Temperature: +90°C
Conductor Size (Cross-Sectional Area): 2.5 mm2
Nominal Insulation Thickness: 0.8 mm
Approx Overall Diameter: 3.6 mm
Max DC Conductor Resistance at 20°C: 7.98 ohm/km
Standard Length: 100 Yards (91.4 meter) / Coils
Insulation Color: Blue
Standard: BS EN 50525-3-41
