120mm Flexible Copper Wire, 450/750 Voltage Rating, LSHF Insulated | Alfanar

120mm Flexible Copper Wire, 450/750 Voltage Rating, LSHF Insulated | Alfanar

(463 Product Views)

YouMats

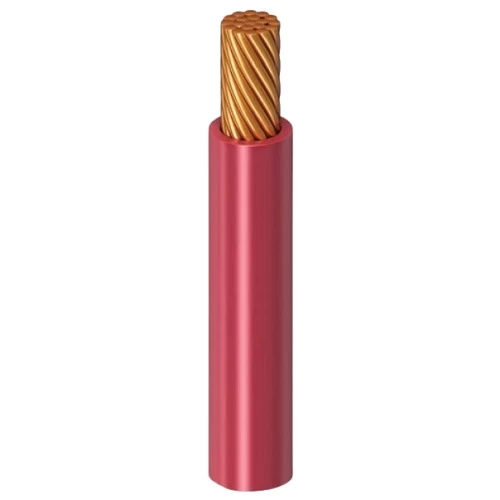

120mm 450/750V flexible copper electric wire, LSHF insulated, phase core color is red, produced by Alfanar Company, use in areas where smoke and acid gas evolution could pose a hazard to personnel or sensitive equipments in residential buildings, schools, hospitals, hotels, shopping centers, subways, etc.

in stock
 Call Now
💳 general.accepted_payments
general.mada
general.master_card
general.visa
general.tamara

Product description

Flexible electrical wire (CU/LSHF), produced by Alfanar Company according to BS 7211 standard. Insulated with low smoke halogen-free compound (LSHF), minimizes smoke and toxic fumes in case of fire, therefore, it is Suitable for use in fixed and protected installations in metallic or non metallic conduits, ducts or trunks for use in/on lighting fittings, switch and control devices, control panels and similar applications, in areas where smoke and acid gas evolution could pose a hazard to personnel or sensitive equipments in residential buildings, schools, hospitals, hotels, shopping centers, subways, etc. Available in various shapes and sizes in highest quality and best prices to suit different applications and needs.

  • Conductor Type: Copper
  • Conductor Shape: Flexible
  • Insulation Material: LSHF (Low Smoke Halogen Free)
  • Voltage: 450/750 volts
  • Conductor Size (Cross-Sectional Area): 120 mm
  • Max DC Conductor Resistance at 20°C: 0.1610 ohm/km
  • Max AC Conductor Resistance at 90°C: 0.2077 ohm/km
  • Approx Overall Diameter: 18.9 mm
  • Weight: 1235 kg/km
  • Color: Red
  • Standard: BS 7211
