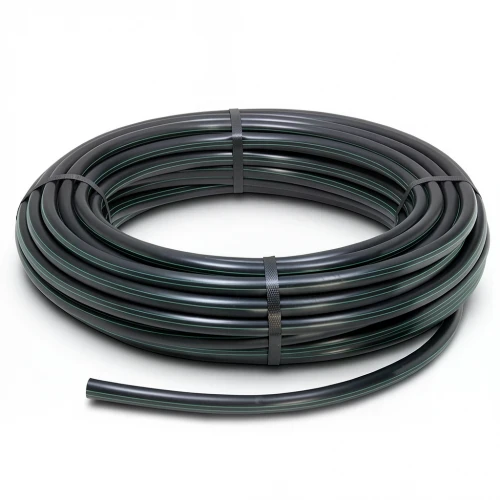

HDPE Polyethylene Plastic Coil Pipe Working Pressure 16 Bar [PE 80] Outer Diameter 90 mm SDR 9 Color Black | Almona Company

This HDPE (high-density polyethylene) coil pipe from Al-Mona Company is engineered for reliable and efficient liquid conveyance in demanding irrigation and water-supply applications across the United Arab Emirates. Its robust PE 80 grade material and SDR 9 rating deliver exceptional resistance to high pressures, making it a dependable choice for municipal water networks, agricultural irrigation lines, and industrial fluid transfer systems.

Built to withstand the harsh desert climate of the UAE, the pipe offers superior protection against UV radiation and external impacts, ensuring long-term performance even under intense sun exposure. With a design life of over 50 years and minimal maintenance requirements, this pipe reduces operational costs and downtime, providing a cost-effective solution for infrastructure projects in Dubai, Abu Dhabi, and beyond.

Manufactured in compliance with DIN 8074/8075 standards, this coil pipe ensures consistent quality and dimensional accuracy. Its flexibility allows for easy handling and installation, particularly in trenchless applications, while the black color provides additional UV stability.

Key Features

• Outer diameter: 90 mm
• Wall thickness: 12.3 mm
• Weight: 3.78 kg/m
• Standard dimensional ratio (SDR): 9
• Working pressure: 16 bar
• Pipe series (S): 4
• Material grade: PE 80
• Color: Black
• Minimum required strength (MRS): 8 MPa
• Design stress (σs): 6.4 MPa
• Design safety factor: C=1.25
• Available in coils: 100 m, 200 m, 300 m (up to 1500 m) for sizes 16 mm to 32 mm; 100 m coils for sizes 40 mm to 160 mm
• Manufactured according to DIN 8074/8075
