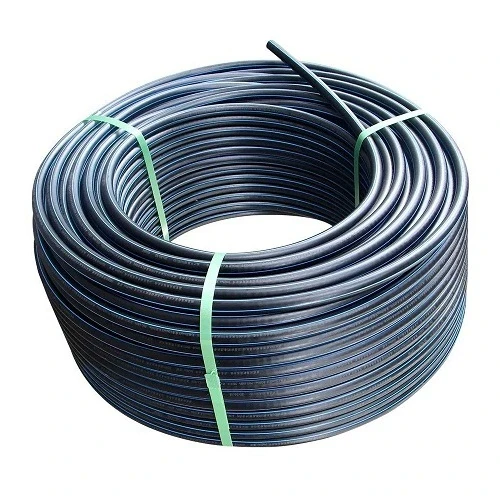

HDPE Plastic Coil Pipe Nominal Pressure 19.2 Bar [PE 100] OD 50 mm SDR 7.4 Color Black with Blue Stripes | Almona Factory

Engineered for demanding water transportation networks, this HDPE coil pipe from Almona Factory delivers exceptional durability and performance. Manufactured to DIN 8074/8075 standards, it is the preferred choice for potable water, irrigation, and industrial applications across the United Arab Emirates.

Key Features

• Material: High-density polyethylene (PE 100) with a Minimum Required Strength (MRS) of 10 MPa
• Pressure rating: 19.2 bar, ideal for high-pressure water systems
• Outer diameter: 50 mm; wall thickness: 6.9 mm
• Standard Dimension Ratio (SDR) 7.4 and Pipe Series (S) 3.2
• Design safety factor: C=1.6 (σs = 6.25 MPa)
• Weight: 0.945 kg/m
• Color: Black with blue stripes for easy identification
• Length: Available in coils from 100 to 1500 meters (for sizes 16–32 mm) and 100-meter coils for sizes 40–160 mm

Applications in the UAE

From Dubai’s high-rise water supply systems to Abu Dhabi’s extensive municipal networks, this pipe ensures reliable, leak-free performance. Its resistance to UV radiation and chemical corrosion (pH 2–12) makes it suitable for harsh desert environments. The pipe’s flexibility and high joint strength also provide excellent earthquake resistance, a critical consideration in the region.

With a maintenance-free lifespan of 50 years, this HDPE pipe reduces lifecycle costs and ensures uninterrupted water flow for residential, commercial, and agricultural projects throughout the Emirates.
