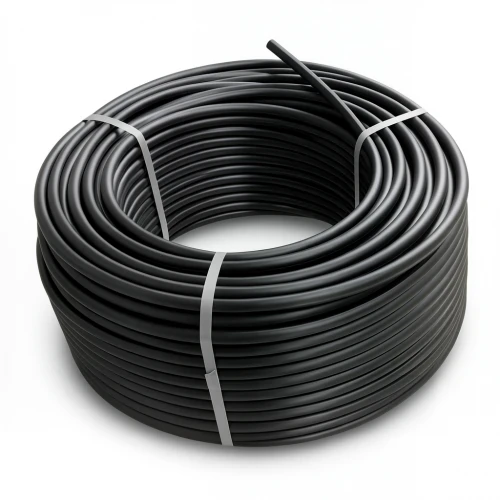

HDPE Polyethylene Coil Pipe Nominal Pressure 6 Bar [PE 100] OD 63 mm SDR 26 Color Black | Almona Factory

This HDPE coil pipe from Almona Factory is a reliable solution for water transportation networks, offering exceptional durability and performance in the demanding UAE climate. Manufactured from high-density polyethylene (PE100), it combines strength, flexibility, and corrosion resistance, making it suitable for both potable water and irrigation applications.

Key Features

• Outside diameter: 63 mm
• Wall thickness: 2.5 mm
• Standard dimension ratio (SDR): 26
• Nominal pressure: 6 bar
• Pipe series (S): 12.5
• Material grade: PE100
• Color: Black
• Minimum required strength (MRS): 10 MPa
• Design stress (σs): 8 MPa
• Design safety factor: C=1.25
• Manufactured according to ISO 4427-2

Applications in the UAE

Ideal for water supply networks, irrigation systems, and infrastructure projects in Dubai, Abu Dhabi, and other emirates. The pipe's resistance to high temperatures and pressure, along with its corrosion resistance, ensures long-term reliability in the region's harsh environment.

Available Lengths

Supplied in coils of 100, 200, or 300 meters (up to 1500 meters for sizes 16 mm to 32 mm). For sizes 40 mm to 160 mm, coils are 100 meters long.
