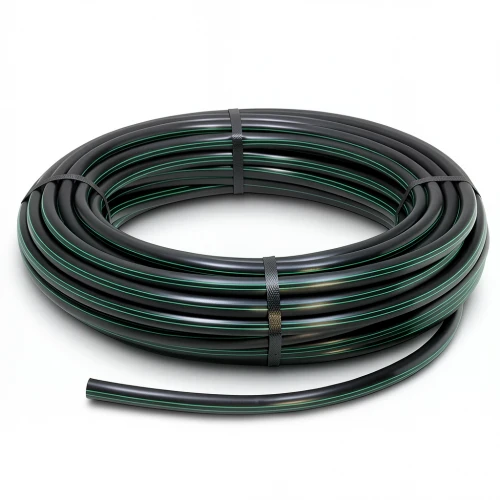

HDPE Plastic Coil Pipe PN 12.5 Bar [PE 80] OD 90 mm SDR 11 Color Black with Green Stripes | Almona Factory

Al Mona Factory presents its premium HDPE (high-density polyethylene) coil pipes, engineered for reliable water transportation in demanding environments across the United Arab Emirates. Manufactured in accordance with DIN 8074/8075, these pipes deliver exceptional durability and performance for a wide range of applications.

Designed to withstand high water pressures, these pipes are ideal for municipal water networks, irrigation systems, and industrial plumbing. With a remarkable 50-year maintenance-free lifespan, they offer a cost-effective and long-term solution for infrastructure projects in Dubai, Abu Dhabi, and beyond. Their superior resistance to UV radiation ensures reliable performance under the intense UAE sun, while their high flexibility provides excellent earthquake resistance, crucial for a region with seismic activity.

These HDPE pipes also feature outstanding chemical corrosion resistance, capable of handling various chemicals within a pH range of 2 to 12, making them suitable for diverse industrial applications.

Key Specifications

• Outside Diameter: 90 mm
• Standard Dimension Ratio: SDR 11
• Pipe Series (S): 5
• Material Grade: PE 80
• Pressure Rating: 12.5 bar
• Wall Thickness: 10 mm
• Minimum Required Strength (MRS): 8 MPa
• Material Weight: 3.14 kg/m
• Design Safety Factor: C=1.25
• Color: Black with green stripes
• Available in coils of 100, 200, 300 up to 1500 meters (sizes 16 mm to 32 mm)
• 100-meter coils available for sizes 40 mm to 160 mm
