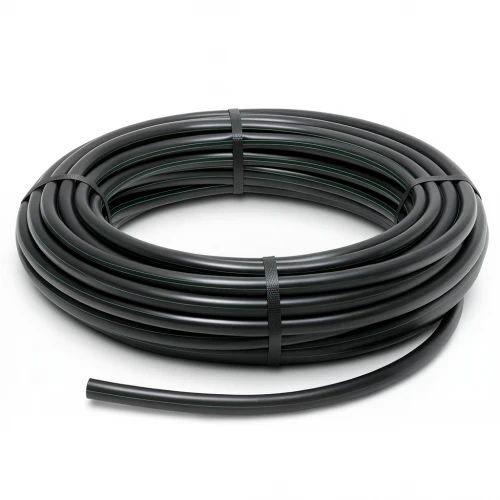

HDPE Polyethylene Coil Pipe Nominal Pressure 16 Bar [PE 80] OD 63 mm SDR 9 Color Black | Almona Company
(7 Product Views)
Product description
This HDPE coil pipe from Almona Company is engineered for demanding irrigation and water supply applications across the UAE. Manufactured from high-density polyethylene (PE80), it delivers exceptional durability and long-term performance, even under the harsh desert climate and intense UV exposure common in Dubai, Abu Dhabi, and the Northern Emirates.
With a nominal pressure of 16 bar and an SDR 9 rating, this pipe is built to handle high water pressures, making it suitable for main irrigation lines, sprinkler systems, and water transfer networks. The material's high resistance to corrosion, chemicals, and abrasion ensures a maintenance-free service life of up to 50 years, reducing operational costs and downtime.
Key Features
- Outside diameter: 63 mm
- Wall thickness: 7.1 mm
- Weight: 1.26 kg/m
- Standard dimension ratio: SDR 9
- Pressure rating: 16 bar
- Pipe series (S): 4
- Material grade: PE 80
- Color: Black
- Minimum required strength (MRS): 8 MPa
- Design stress (ฯs): 6.4 MPa
- Design safety factor: C=1.25
- Manufactured to DIN 8074/8075
Available in coil lengths of 100, 200, and 300 meters (up to 1500 meters for sizes 16-32 mm), and 100-meter coils for sizes 40-160 mm. This flexibility allows for easy handling and installation across various project scales, from residential landscaping to large agricultural farms. Choose Almona's HDPE coil pipes for reliable, long-lasting performance in the UAE's demanding environment.
