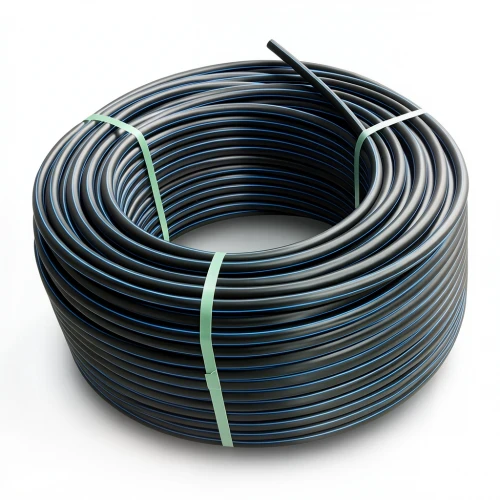

HDPE Plastic Coil Pipe Nominal Pressure 20 Bar [PE 100] Outside Diameter 75 mm SDR 9 Color Black with Blue Stripes | Almona Factory

This HDPE (high-density polyethylene) coil pipe from Al Mona Factory is engineered for high-performance water transportation, meeting the rigorous demands of the UAE's infrastructure projects. Manufactured in accordance with DIN 8074/8075, this pipe offers exceptional durability and a maintenance-free service life of 50 years, making it a reliable choice for both potable water supply and irrigation systems.

With a nominal pressure rating of 20 bar and a PE 100 material grade, this pipe can handle high-pressure applications with ease. Its SDR 9 dimension ratio ensures optimal wall thickness (8.4 mm) for structural integrity, while the MRS of 8 MPa and design safety factor of C=1.25 guarantee long-term performance under stress. The pipe's flexibility and welded joint strength provide excellent resistance to seismic activity, a crucial feature for the region's dynamic environment.

This HDPE pipe is also highly resistant to chemical corrosion, withstanding a pH range of 2 to 12, and offers superior UV protection, making it suitable for outdoor installation in the UAE's harsh desert climate. The black pipe with blue stripes is easy to identify and install, reducing labor costs and time compared to traditional piping materials.

Key Features

• Material: PE 100 high-density polyethylene
• Nominal pressure: 20 bar
• Outside diameter: 75 mm
• SDR 9 (Standard Dimension Ratio)
• Pipe series (S): 4
• Wall thickness: 8.4 mm
• Minimum Required Strength (MRS): 8 MPa
• Design safety factor: C=1.25
• Weight: 1.78 kg/m
• Color: Black with blue stripes
• Length: Available in coils (100m, 200m, 300m up to 1500m for sizes 16-32mm; 100m coils for sizes 40-160mm)

Ideal for water distribution networks, agricultural irrigation, and industrial applications across Dubai, Abu Dhabi, and Sharjah, this HDPE coil pipe combines longevity with cost-effectiveness.
