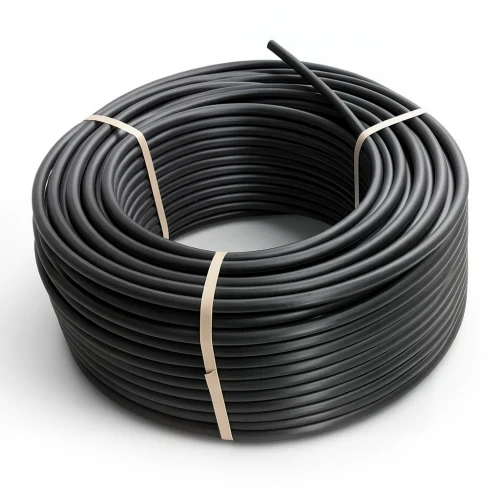

HDPE Plastic Coil Pipe PN 9.9 Bar [PE 100] OD 160 mm SDR 13.6 Color Black | Almona Factory

These HDPE coil pipes from Al Mona Factory are manufactured to DIN 8074/8075 standards, ensuring reliable performance for water transportation networks across the UAE. Made from high-density polyethylene (PE 100), they offer exceptional strength and durability, capable of withstanding high water pressures common in municipal and industrial applications.

With a design life of over 50 years without maintenance, these pipes are a cost-effective solution for long-term infrastructure projects in Dubai, Abu Dhabi, and other emirates. Their flexibility allows them to resist seismic activity and ground movement, making them suitable for the region's varied soil conditions. Additionally, they provide superior resistance to UV radiation and chemical corrosion, handling a wide pH range from 2 to 12.

Key Features

• Outside diameter: 160 mm
• Standard dimensions ratio (SDR): 13.6
• Pipe series (S): 6.3
• Material grade: PE 100
• Pressure rating: 9.9 bar
• Wall thickness: 11.8 mm
• Minimum required strength (MRS): 10 MPa
• Weight: 5.56 kg/m
• Design safety factor: C=1.6, σs=6.25 MPa
• Color: Black
• Available in coils: 100m, 200m, 300m up to 1500m (for sizes 16mm to 32mm); 100m coils for sizes 40mm to 160mm

These pipes are ideal for potable water supply, irrigation systems, and industrial fluid transport, meeting the high standards required for UAE construction and infrastructure projects.
