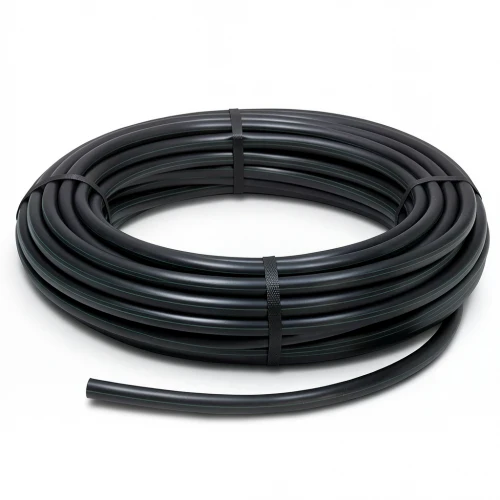

HDPE Plastic Coil Pipe Nominal Pressure 6 Bar [PE 80] Outside Diameter 63 mm SDR 22 Color Black | Almona Factory

This HDPE coil pipe from Almona Factory is engineered for reliable liquid conveyance in demanding environments across the United Arab Emirates. Manufactured from high-density polyethylene (PE 80), it delivers exceptional durability, flexibility, and long-term performance, making it a trusted choice for irrigation networks, water supply lines, and industrial applications from Dubai to Abu Dhabi.

Designed to withstand high water pressure, this pipe offers a maintenance-free service life of up to 50 years, reducing operational costs and downtime. Its resistance to corrosion, abrasion, and chemical attack ensures superior protection against harsh external factors, including the UAE's intense heat and UV exposure.

Key Features

• Outside diameter: 63 mm
• Wall thickness: 2.9 mm
• Weight: 0.563 kg/m
• Standard dimension ratio (SDR): 22
• Nominal pressure: 6 bar
• Pipe series (S): 10.5
• Material grade: PE 80
• Color: Black
• Minimum required strength (MRS): 8 MPa
• Design stress (σs): 6.4 MPa
• Design safety factor: C=1.25
• Manufactured according to DIN 8074/8075

Available in coil lengths of 100, 200, 300, and up to 1500 meters for sizes 16 mm to 32 mm, and 100-meter coils for sizes 40 mm to 160 mm, this pipe adapts to various project scales. Ideal for agricultural irrigation, landscaping, and water distribution systems across the Emirates, it ensures efficient flow and easy installation, even in remote or challenging terrains.
