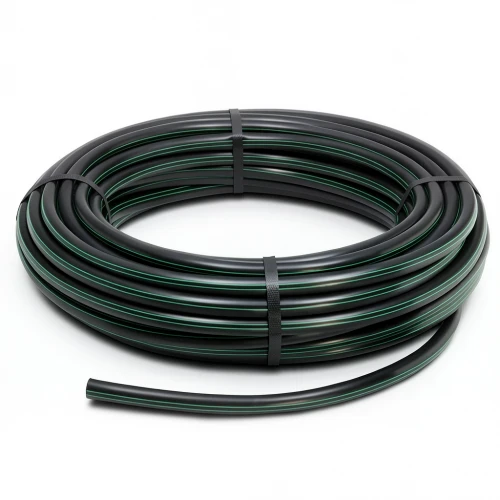

HDPE Plastic Coil Pipe PN 6 Bar [PE 80] OD 125 mm SDR 22 Color Black with Green Stripes | Almona Factory

Engineered for demanding water transportation networks, this HDPE coil pipe from Almona Factory delivers exceptional durability and performance. Manufactured in accordance with DIN 8074/8075, it is the ideal choice for projects across the United Arab Emirates, from Dubai's infrastructure developments to Abu Dhabi's utility expansions.

Thanks to its high-density polyethylene construction, this pipe withstands high operating pressures, making it suitable for water networks that experience significant stress. With a design life of 50 years and minimal maintenance requirements, it offers a long-term, cost-effective solution for contractors and municipalities.

The pipe's inherent flexibility allows for easy bending, reducing the need for fittings and trenching—a significant advantage in the UAE's sandy terrain. It also resists UV radiation and chemical corrosion, handling a wide pH range (2 to 12), ensuring reliable service in harsh environmental conditions.

Key Features

• Material: High-Density Polyethylene (PE 80)
• Pressure Rating: 6 bar (PN 6)
• Outside Diameter: 125 mm
• Standard Dimension Ratio: SDR 22
• Wall Thickness: 5.7 mm
• Minimum Required Strength (MRS): 8 MPa
• Design Safety Factor: C=1.25
• Weight: 2.16 kg/m
• Color: Black with green stripes
• Available in coils: 100m, 200m, 300m, up to 1500m (for sizes 16mm–32mm); 100m coils for sizes 40mm–160mm

This pipe is suitable for potable water supply, irrigation systems, and industrial fluid handling. Its earthquake resistance and flexibility make it a preferred choice for infrastructure projects in the UAE, ensuring uninterrupted service even under challenging conditions.
