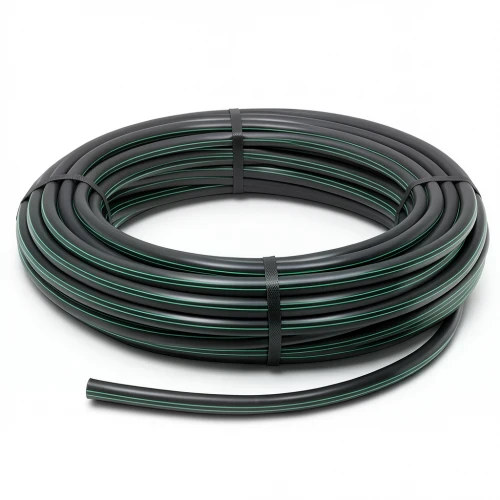

HDPE Plastic Coil Pipe PN 4 Bar [PE 80] OD 63 mm SDR 41 mm Black with Green Stripes | Almona Factory

This HDPE coil pipe from Al Mona Factory is engineered for reliable water transportation in the UAE's demanding environment. Manufactured to DIN 8074/8075 standards, it combines high-density polyethylene (PE80) with a pressure rating of 4 bar and an outside diameter of 63 mm, ensuring consistent flow for residential, commercial, and municipal projects.

In the UAE's hot climate, the pipe's black color with green stripes offers enhanced UV resistance, while its flexibility and welded joint strength provide excellent performance in seismic zones. With a service life of over 50 years and minimal maintenance, it's a cost-effective solution for long-term infrastructure.

Key Features

• Material: PE80 (MRS 8 MPa) with design safety factor C=1.25
• Pressure rating: 4 bar (PN 4)
• Outside diameter: 63 mm; wall thickness: 1.8 mm
• Standard dimension ratio: SDR 41; pipe series S: 20
• Weight: 0.364 kg/m
• Available in coils of 100, 200, 300 meters (up to 1500 m for smaller sizes)
• Resistant to chemicals (pH 2-12) and corrosion
• UV resistant and earthquake resistant

Ideal for water networks in Dubai, Abu Dhabi, and Sharjah, this pipe meets the high standards required for potable water and irrigation systems across the Emirates.
