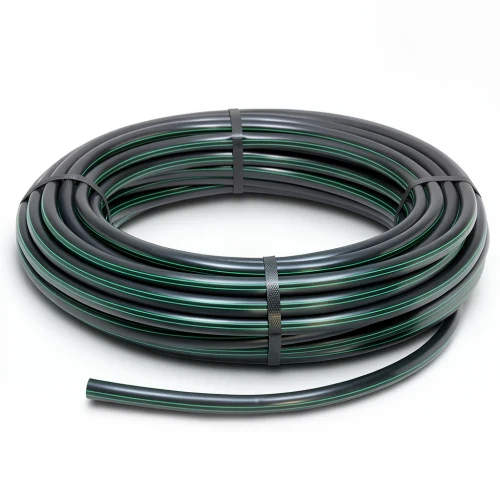

HDPE Plastic Coil Pipe PN 6 Bar [PE 63] OD 140 mm SDR 17.6 Color Black with Green Stripes | Almona Factory

Almona Factory presents its high-density polyethylene (HDPE) coil pipes, engineered for reliable water transportation networks across the United Arab Emirates. Manufactured in accordance with DIN 8074/8075, these pipes combine durability with exceptional performance, making them a preferred choice for modern infrastructure projects in Dubai, Abu Dhabi, and beyond.

Key Features

• Material grade PE 63 with a minimum required strength (MRS) of 6.3 MPa
• Pressure rating: 6 bar, suitable for high-pressure water systems
• Outside diameter: 140 mm, with a standard dimension ratio (SDR) of 17.6
• Wall thickness: 8 mm, providing robust structural integrity
• Lightweight design (3.34 kg/m) for easy handling and installation
• Superior resistance to UV exposure, chemical corrosion (pH 2-12), and seismic activity
• Long service life of 50 years with minimal maintenance

Applications in the UAE

Ideal for potable water distribution, irrigation networks, and industrial fluid transport, these pipes are well-suited to the UAE's demanding climate and infrastructure needs. Their flexibility and joint strength ensure reliable performance in both urban and remote installations, while their corrosion resistance extends service life in saline soil conditions common in the region.

Available in coil lengths from 100 to 1500 meters (for sizes 16-32 mm) and 100-meter coils for sizes up to 160 mm, the pipes offer flexibility for various project scales.
