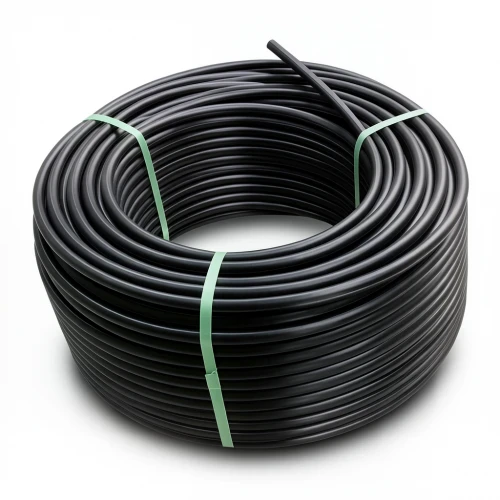

HDPE Coil Pipe PN 10 Bar [PE 80] OD 40 mm SDR 13.6 Color Black | Almona Factory

Almona Factory presents high-density polyethylene (HDPE) coil pipes engineered for reliable water transportation in the demanding conditions of the United Arab Emirates. These pipes are manufactured in accordance with ISO 4427-2, ensuring compliance with international quality standards. The PE 80 material grade provides excellent strength and durability, capable of withstanding high temperatures, pressure, and external stresses such as earthquakes and ground movement.

With an outer diameter of 40 mm and a standard dimension ratio (SDR) of 13.6, these pipes deliver consistent performance for municipal, agricultural, and industrial applications. The black color offers UV resistance, making them suitable for above-ground installation in the UAE's sunny climate. Available in coils of 100 meters, they are easy to transport and install, reducing labor costs and minimizing joints.

Key Features

• Pressure rating: PN 10 bar
• Material grade: PE 80
• Outer diameter: 40 mm
• Standard dimension ratio: SDR 13.6
• Wall thickness: 3 mm
• Minimum required strength (MRS): 8 MPa
• Design stress: 6.4 MPa
• Design safety factor: C=1.25
• Color: black (UV resistant)
• Length: 100-meter coils
• Compliant with ISO 4427-2

These HDPE pipes are ideal for water supply networks, irrigation systems, and sewerage lines across Dubai, Abu Dhabi, and Sharjah. Their corrosion resistance and long service life make them a cost-effective choice for infrastructure projects, while their flexibility allows for easy installation in challenging terrains.
