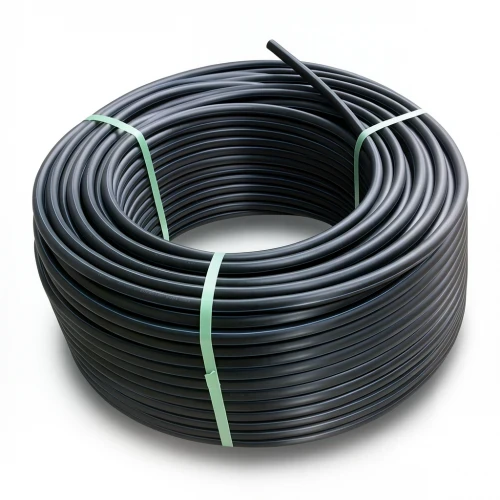

HDPE Plastic Coil Pipe PN 5 Bar [PE 80] OD 63 mm SDR 26 Color Black | Almona Factory

These HDPE plastic pipe coils from Almona Factory are engineered for reliable water transportation networks, meeting the rigorous demands of the UAE's infrastructure projects. Manufactured from high-density polyethylene (PE 80) in accordance with ISO 4427-2, they offer exceptional strength, durability, and resistance to corrosion, ensuring long-term performance in both potable water and general industrial applications.

With a pressure rating of 5 bar and an outer diameter of 63 mm, these coils are versatile for a range of installations, from municipal water lines to agricultural irrigation systems. Their ability to withstand high temperatures and pressure makes them suitable for the UAE's hot climate and demanding operational conditions.

Key Features

• Material: High-density polyethylene (PE 80)
• Pressure rating: 5 bar
• Outer diameter: 63 mm
• Standard dimension ratio (SDR): 26
• Wall thickness: 2.5 mm
• Minimum required strength (MRS): 8 MPa
• Design stress (σs): 6.4 MPa
• Design safety factor: C = 1.25
• Color: Black
• Complies with ISO 4427-2
• Available in coil lengths: 100 m, 200 m, 300 m up to 1500 m (for sizes 16 mm to 32 mm); 100 m coils for sizes 40 mm to 160 mm

Applications in the UAE

These HDPE coils are ideal for water supply networks in residential, commercial, and industrial projects across Dubai, Abu Dhabi, and Sharjah. They are also well-suited for landscaping irrigation, cooling water lines, and temporary water distribution on construction sites, benefiting from their flexibility and ease of installation.
