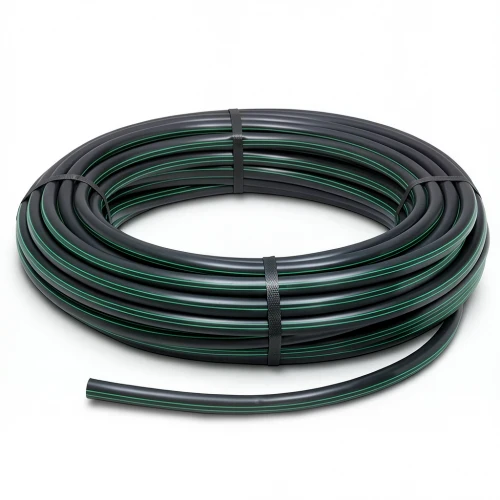

HDPE Plastic Coil Pipe PN 6 Bar [PE 80] OD 110 mm SDR 22 Color Black with Green Stripes | Almona Factory

This HDPE coil pipe, manufactured by Almona Factory in compliance with DIN 8074/8075, delivers exceptional performance for water transportation systems. Engineered from high-density polyethylene (PE 80), it offers outstanding durability and reliability, making it a preferred choice for agricultural irrigation, landscaping, and municipal water supply projects across the UAE.

Key Features

• Pressure rating: 6 bar (PN 6)
• Outer diameter: 110 mm
• Standard dimension ratio (SDR): 22
• Pipe series (S): 10.5
• Wall thickness: 6.3 mm
• Minimum required strength (MRS): 8 MPa
• Design safety factor: C = 1.25
• Material weight: 2.08 kg/m
• Color: Black with green stripes
• Available in coils: 100 m, 200 m, 300 m, up to 1500 m (for sizes 16 mm to 32 mm); 100 m coils for sizes 40 mm to 160 mm

Applications in the UAE

Given the UAE's arid climate and reliance on efficient water management, these pipes are ideal for irrigation networks in farms, public parks, and golf courses. Their resistance to UV radiation and chemical corrosion (pH range 2–12) ensures longevity even under harsh desert sun. The high flexibility and welded joint strength also provide excellent earthquake resistance, making them suitable for infrastructure projects in Dubai, Abu Dhabi, and Sharjah.

With a maintenance-free service life of up to 50 years, these HDPE pipes offer a cost-effective and sustainable solution for both potable water and industrial fluid transport.
