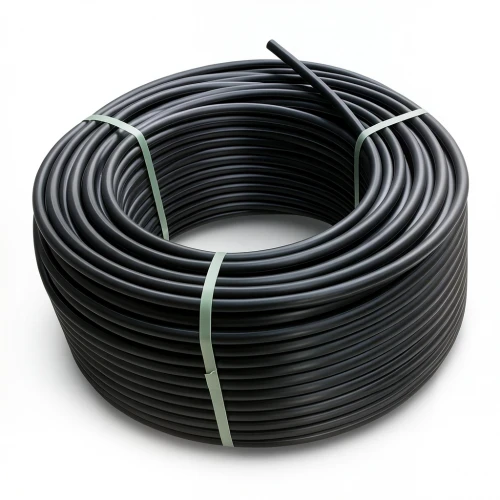

HDPE Plastic Coil Pipe PN 20 Bar [PE 100] Outside Diameter 25 mm SDR 9 mm Color Black | Almona Factory

This HDPE coil pipe from Al-Mona Factory is engineered for reliable water transportation in demanding environments. Manufactured from high-density polyethylene (PE100), it delivers exceptional strength, durability, and resistance to corrosion, ensuring a long service life even under harsh UAE climatic conditions.

With a pressure rating of PN 20 bar and a standard dimensional ratio (SDR 9), this pipe is built to withstand high operating pressures. Its smooth interior reduces friction losses, promoting efficient water flow—a key benefit for municipal and industrial projects across Dubai, Abu Dhabi, and the Northern Emirates.

Key Features

• Material: High-density polyethylene (PE100)
• Outside diameter: 25 mm
• Wall thickness: 3.0 mm
• Standard dimensional ratio: SDR 9
• Pressure rating: 20 bar (PN 20)
• Pipe series (S): 4
• Minimum required strength (MRS): 10 MPa
• Design stress (σs): 8 MPa
• Design safety factor: C=1.25
• Color: Black
• Manufactured according to ISO 4427-2

Applications

Ideal for potable water supply lines, irrigation systems, and industrial water networks. The coil format simplifies handling and installation, reducing labor time and costs—especially valuable for large-scale projects in the UAE's fast-growing infrastructure sector.

Available in coil lengths from 100 to 1500 meters (for diameters 16–32 mm) and 100-meter coils for diameters 40–160 mm, offering flexibility for projects of any scale.
