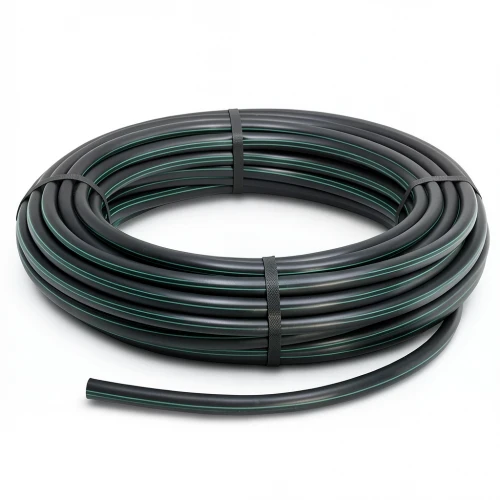

HDPE Polyethylene Coil Pipe PN 16 Bar [PE 80] Outside Diameter 25 mm SDR 9 Color Black | Almona Factory

This HDPE (high-density polyethylene) coil pipe from Al Mona Factory is engineered for demanding water and irrigation applications across the UAE. With a pressure rating of 16 bar and an SDR 9 dimension ratio, it reliably handles high-pressure conditions, making it a trusted choice for municipal water networks, agricultural irrigation, and industrial fluid transfer.

Manufactured to DIN 8074/8075 standards, this pipe offers exceptional durability and a maintenance-free service life of up to 50 years. Its black color provides UV resistance, crucial for the intense sun exposure common in the Gulf region. The smooth inner surface minimizes friction losses, ensuring efficient flow and reduced pumping costs.

Key Features

• Pressure rating: 16 bar (PN 16)
• Outside diameter: 25 mm
• Wall thickness: 2.8 mm
• Standard dimension ratio: SDR 9
• Material grade: PE 80 (MRS 8 MPa)
• Design stress: 6.4 MPa (safety factor C=1.25)
• Weight: 0.200 kg/m
• Available in coils: 100m, 200m, 300m, up to 1500m (for 16-32 mm sizes); 100m coils for 40-160 mm sizes
• Manufactured according to DIN 8074/8075

Whether for new installations or retrofits, this HDPE coil pipe meets the rigorous demands of UAE construction and agriculture, offering a cost-effective, long-lasting solution.
