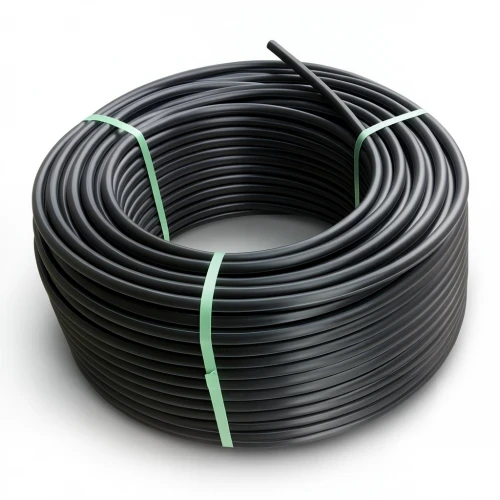

HDPE Plastic Coil Pipe PN 16 Bar [PE 80] Outside Diameter 50 mm SDR 9 Color Black | Almona Factory

Introducing the HDPE Plastic Coil Pipe from Al-Mona Factory, a premium solution for water transportation networks across the United Arab Emirates. Manufactured in accordance with ISO 4427-2, this pipe delivers exceptional performance in demanding conditions, from the scorching summer heat of Dubai to the humid coastal environment of Sharjah.

Crafted from high-density polyethylene (PE 80), this coil pipe offers outstanding resistance to chemicals, ultraviolet rays, and corrosion, ensuring long-lasting durability. With a pressure rating of 16 bar and an outer diameter of 50 mm, it is engineered to handle high-pressure applications with ease.

Key Features

• Material: High-density polyethylene (PE 80)
• Pressure rating: 16 bar (PN 16)
• Outside diameter: 50 mm
• Standard dimension ratio: SDR 9
• Wall thickness: 4.6 mm
• Minimum Required Strength (MRS): 8 MPa
• Design stress (σs): 6.4 MPa
• Design safety factor: C = 1.25
• Color: Black
• Length: Available in coils of 100, 200, and 300 meters (up to 1500 meters for sizes 16-32 mm); 100-meter coils for sizes 40-160 mm
• Compliant with ISO 4427-2

Applications in the UAE

This versatile pipe is ideal for a wide range of applications, including potable water supply, irrigation systems, and industrial fluid transport. Its robust construction ensures reliable performance in both residential and commercial projects across Abu Dhabi, Dubai, and the Northern Emirates. Whether you are working on a large-scale infrastructure project or a small installation, this HDPE coil pipe delivers the strength and flexibility required for success.
