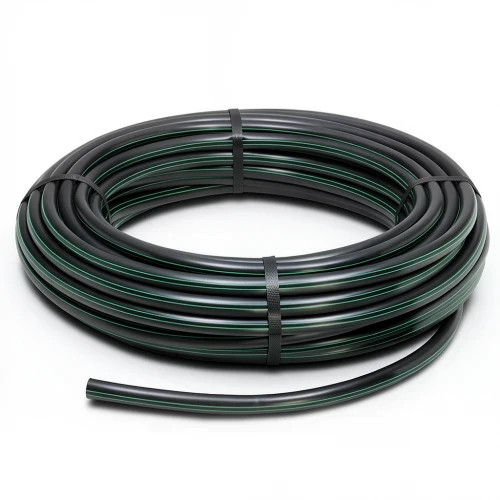

HDPE Plastic Coil Pipe Nominal Pressure 6 Bar [PE 63] Outside Diameter 40 mm SDR 17.6 Color Black with Green Stripes | Almona Factory

Discover the reliability of Almona Factory's HDPE Plastic Coil Pipes, engineered for demanding water transportation networks across the United Arab Emirates. Manufactured in compliance with DIN 8074/8075, these pipes are crafted from high-density polyethylene (HDPE) to deliver exceptional durability and performance in diverse conditions, from the intense heat of Dubai summers to the corrosive soils of coastal areas.

These pipes are designed to withstand high water pressure, making them a trusted choice for municipal and industrial water supply systems. With a service life of over 50 years without maintenance, they offer long-term value for infrastructure projects in Abu Dhabi, Sharjah, and beyond. Their superior resistance to UV radiation ensures they remain robust even when exposed to prolonged sunlight, while their flexibility provides outstanding earthquake resistance—a crucial feature for regions prone to seismic activity.

In addition to mechanical strength, these HDPE pipes offer excellent chemical corrosion resistance, tolerating a wide pH range from 2 to 12, which makes them suitable for various industrial fluids. The black color with green stripes ensures easy identification and UV protection.

Key Specifications

• Outside Diameter: 40 mm
• Standard Dimension Ratio: SDR 17.6
• Pipe Series (S): 8.3
• Material Grade: PE 63
• Nominal Pressure: 6 bar
• Wall Thickness: 2.3 mm
• Minimum Required Strength (MRS): 6.3 MPa
• Material Weight: 0.285 kg/m
• Design Safety Factor: C=1.25, σs = 5.04 MPa
• Color: Black with green stripes

Applications in the UAE

Ideal for potable water distribution, irrigation systems, and industrial piping networks, these HDPE coil pipes are available in lengths of 100, 200, and 300 meters (up to 1500 meters for smaller diameters). For sizes from 40 mm to 160 mm, they come in 100-meter coils, ensuring convenient handling and installation across projects in the UAE.
