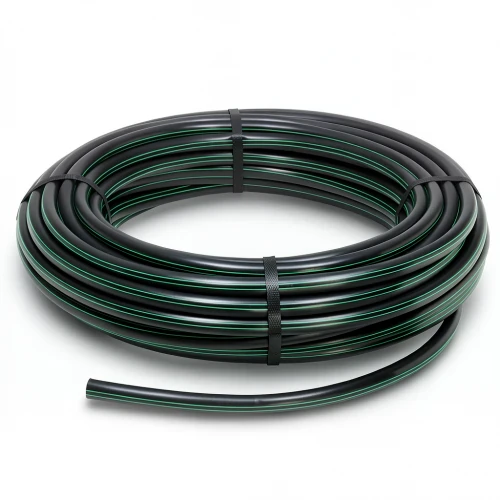

HDPE Plastic Coil Pipe PN 15.9 Bar [PE 63] OD 32 mm SDR 7.4 Color Black with Green Stripes | Almona Factory

Almona Factory presents high-density polyethylene (HDPE) coil pipes, engineered for water transportation networks across the United Arab Emirates. Manufactured in accordance with DIN 8074/8075, these pipes deliver exceptional durability and performance, making them a trusted choice for projects in Dubai, Abu Dhabi, and beyond.

These HDPE pipes are designed to handle high water pressure, ensuring reliable operation in demanding municipal and industrial applications. With a design life of 50 years requiring minimal maintenance, they offer long-term value for infrastructure projects. Their flexibility provides superior resistance to earthquakes and ground movement, a crucial feature for the region's dynamic construction landscape.

In addition to mechanical strength, these pipes resist UV radiation and chemical corrosion, withstanding a pH range of 2 to 12. This makes them suitable for various fluids and environmental conditions, from potable water lines to industrial transfer systems.

Key Specifications

• Outside diameter: 32 mm
• Standard dimension ratio (SDR): 7.4
• Pipe series (S): 3.2
• Material grade: PE 63
• Pressure rating: 15.9 bar
• Wall thickness: 4.4 mm
• Minimum required strength (MRS): 6.3 MPa
• Weight: 0.386 kg/m
• Design safety factor: C=1.25
• Design stress (σs): 5.04 MPa
• Color: Black with green stripes
• Available in coils: 100 m, 200 m, 300 m up to 1500 m (sizes 16 mm to 32 mm); 100 m coils (sizes 40 mm to 160 mm)

Ideal for water supply, irrigation, and industrial applications, these HDPE coil pipes combine ease of transport and installation with long-lasting performance, meeting the rigorous standards of the UAE's building and infrastructure sector.
