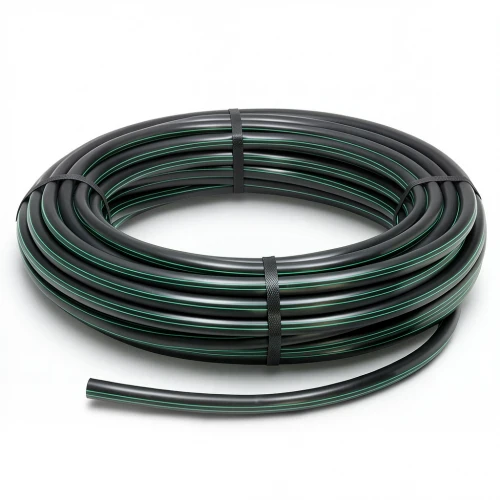

HDPE Plastic Coil Pipe PN 16 Bar [PE 80] OD 40 mm SDR 9 Color Black with Green Stripes | Almona Factory

This HDPE coil pipe from Al Mona Factory is engineered for efficient and durable fluid transportation, meeting the rigorous demands of water networks across the United Arab Emirates. Manufactured to DIN 8074/8075 standards, it combines high strength with long-term reliability, making it a preferred choice for both potable water supply and irrigation systems.

Key Features

• Material: High-density polyethylene (PE80) with a minimum required strength (MRS) of 8 MPa
• Pressure rating: 16 bar, suitable for high-pressure applications
• Outside diameter: 40 mm with a standard dimension ratio (SDR 9) and a wall thickness of 4.5 mm
• Design safety factor: C=1.25, ensuring robust performance
• Weight: 0.509 kg/m for easy handling and installation
• Color: Black with green stripes for easy identification
• Length: Available in 100-meter coils (for sizes 40 mm to 160 mm) and custom coil lengths from 100 to 1500 meters (for sizes 16 mm to 32 mm)

Applications in the UAE

Ideal for water distribution networks in Dubai, Abu Dhabi, and Sharjah, this pipe withstands high water pressures and provides a maintenance-free service life of up to 50 years. Its resistance to UV radiation and chemical corrosion (pH 2-12) makes it suitable for outdoor installations and aggressive soil conditions. Additionally, its flexibility and welded joint integrity offer excellent seismic resistance, a valuable trait in the region.

Choose Al Mona Factory HDPE pipes for a reliable, cost-effective solution that meets the highest quality standards for water transportation in the UAE.
