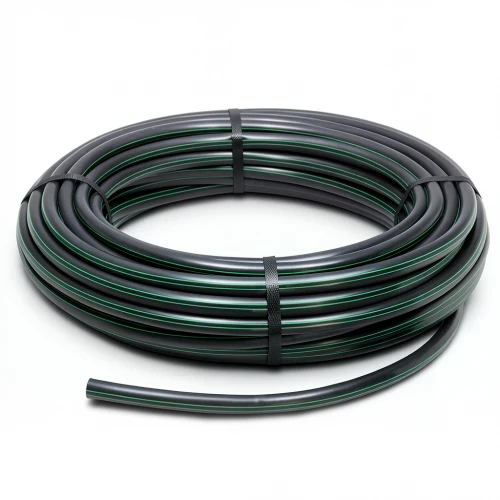

HDPE Plastic Coil Pipe PN 15.9 Bar [PE 63] OD 110 mm SDR 7.4 Color Black with Green Stripes | Almona Factory
(34 Product Views)
Product description
Al Mona Factory presents its premium HDPE coil pipes, engineered to meet the rigorous demands of water transportation networks in the United Arab Emirates. Manufactured in accordance with DIN 8074/8075, these pipes are crafted from high-density polyethylene (PE 63), ensuring exceptional strength and longevity for both potable water supply and industrial applications.
Key Features
- Outside diameter: 110 mm
- Standard dimension ratio (SDR): 7.4
- Pipe series (S): 3.2
- Material grade: PE 63
- Pressure rating: 15.9 bar
- Wall thickness: 15.1 mm
- Minimum required strength (MRS): 6.3 MPa
- Weight: 4.49 kg/m
- Design safety factor: C = 1.25 (σs = 5.04 MPa)
- Color: Black with green stripes
- Available in coil lengths: 100 m, 200 m, 300 m, up to 1500 m (for sizes 16–32 mm); 100 m coils for sizes 40–160 mm
Durability and Performance
These HDPE pipes are built to withstand high water pressure, making them ideal for networks subjected to demanding conditions common in the UAE's infrastructure projects. With a service life of over 50 years without maintenance, they offer a cost-effective and reliable solution for long-term installations.
Resistance to Environmental Factors
The pipes provide superior protection against external elements, including prolonged exposure to UV radiation—a critical advantage in the UAE's sunny climate. Their high flexibility, both in the pipe and at welded joints, ensures excellent resistance to seismic activity, while their chemical resistance allows them to handle a wide range of substances with pH levels between 2 and 12.
Applications in the UAE
Ideal for water supply and transportation networks across Dubai, Abu Dhabi, and Sharjah, these HDPE coil pipes are suitable for municipal water distribution, irrigation systems, and industrial fluid transfer. Their robust construction and ease of installation make them a preferred choice for contractors and engineers working on residential, commercial, and infrastructure projects throughout the Emirates.
