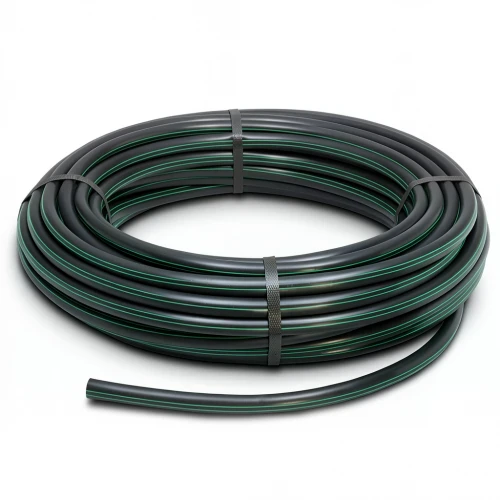

HDPE Plastic Coil Pipe PN 15.7 Bar [PE 63] Outside Diameter 140 mm SDR 6 Color Black with Green Stripes | Almona Factory

This HDPE coil pipe, manufactured by Almona Factory in accordance with DIN 8074/8075, is engineered for high-performance water transportation in the United Arab Emirates. Its high-density polyethylene construction offers exceptional durability, flexibility, and resistance to environmental stressors, making it a reliable choice for both potable water and industrial applications across Dubai, Abu Dhabi, and the wider region.

Designed to withstand high water pressures, this pipe ensures a maintenance-free service life of up to 50 years, reducing long-term operational costs. Its UV resistance allows for prolonged outdoor exposure under the intense UAE sun, while its flexibility provides excellent earthquake resistance, a key consideration for infrastructure resilience. Additionally, the pipe's chemical resistance (pH 2-12) makes it suitable for a variety of fluids.

Key Features

• Material: High-density polyethylene (PE 63)
• Pressure rating: 15.7 bar
• Outside diameter: 140 mm
• Standard dimension ratio: SDR 6
• Pipe series (S): 2.5
• Wall thickness: 23.3 mm
• Minimum required strength (MRS): 6.3 MPa
• Design safety factor: C=1.6 (σs = 3.94 MPa)
• Weight: 8.47 kg/m
• Color: Black with green stripes
• Length: Available in 100-meter coils (for sizes 40 mm to 160 mm); other coil lengths available for smaller diameters

This pipe is an optimal solution for water networks, irrigation systems, and industrial fluid transport in the UAE, offering long-term reliability and ease of installation.
