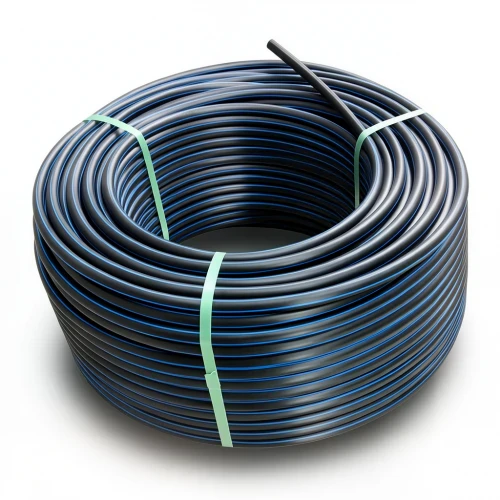

HDPE Plastic Coil Pipe PN 12.5 Bar [PE 100] OD 140 mm SDR 13.6 Color Black with Blue Stripes | Almona Factory

Introducing the HDPE Plastic Coil Pipe from Al Mona Factory, a premium solution for water transportation networks across the United Arab Emirates. Manufactured to DIN 8074/8075 standards, this pipe is crafted from high-density polyethylene (PE 100) and is engineered to deliver outstanding performance in demanding conditions.

With a pressure rating of 12.5 bar and an outside diameter of 140 mm, this pipe is ideal for high-pressure water networks, including municipal supply lines, irrigation projects, and industrial applications. Its SDR 13.6 ratio ensures optimal wall thickness for strength and durability, while the black exterior with blue stripes provides easy identification and UV resistance.

Key Features

• Material: High-density polyethylene (PE 100) with Minimum Required Strength (MRS) of 8 MPa
• Pressure: 12.5 bar, suitable for high-pressure systems
• Outside Diameter: 140 mm, with wall thickness of 10.3 mm
• Standard Dimension Ratio: SDR 13.6 (Pipe Series S=6.3)
• Design Safety Factor: C=1.25
• Weight: 4.26 kg/m, lighter than traditional pipes for easy handling
• Color: Black with blue stripes for UV protection and identification
• Length: Available in coils of 100 meters (for sizes 40 mm to 160 mm)

Applications in the UAE

From Dubai's rapid urban development to Abu Dhabi's large-scale infrastructure projects, this HDPE pipe is built to meet the rigorous demands of the UAE's water networks. Its flexibility and resistance to earthquakes make it a reliable choice for underground installations, while its chemical resistance (pH 2-12) ensures longevity in diverse environments.

With a maintenance-free lifespan of 50 years, this pipe offers a cost-effective and durable solution for water transportation, irrigation, and industrial fluid handling across the Emirates.
