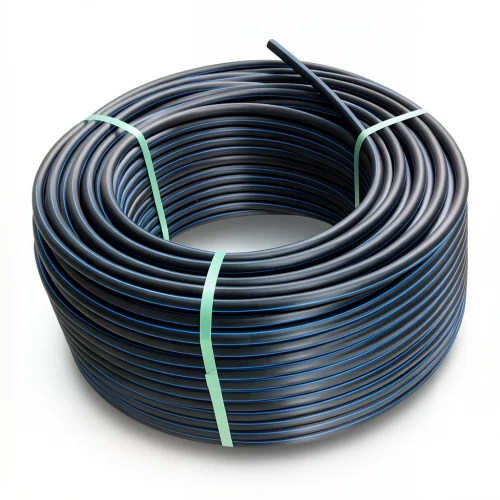

HDPE Plastic Coil Pipe PN 12.5 Bar [PE 100] OD 160 mm SDR 11 Color Black with Blue Stripes | Almona Factory
(34 Product Views)
Product description
Almona Factory presents HDPE coil pipes engineered for efficient water transportation, meeting DIN 8074/8075 standards. Manufactured from high-density polyethylene (PE100), these pipes deliver outstanding durability and performance for demanding applications.
In the UAE's challenging climate, these pipes offer superior resistance to UV radiation and chemical corrosion (pH 2-12), ensuring long service life with minimal maintenance. Their flexibility provides excellent seismic resistance, making them ideal for infrastructure projects in Dubai, Abu Dhabi, and across the Emirates.
Key Features
- Outside diameter: 160 mm
- Standard dimension ratio: SDR 11
- Pipe series (S): 5
- Material grade: PE 100
- Pressure rating: 12.5 bar
- Wall thickness: 14.6 mm
- Minimum required strength (MRS): 10 MPa
- Weight: 6.74 kg/m
- Design safety factor: C=1.6 (σs = 6.25 MPa)
- Color: Black with blue stripes
- Length: Coils from 100 to 1500 meters (sizes 16-32 mm); 100-meter coils for sizes 40-160 mm
These pipes are suitable for potable water supply, irrigation, and industrial applications, ensuring reliable performance and easy installation across the UAE.
